Centric 141.40521 - Semi-Loaded Brake Caliper
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Special Note:
| Make | Honda |
| Model | Prelude |
| Year | 1992 |
Product Description

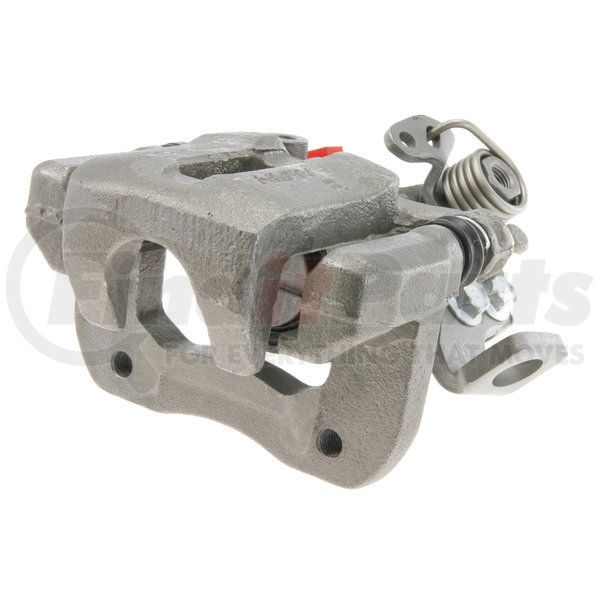

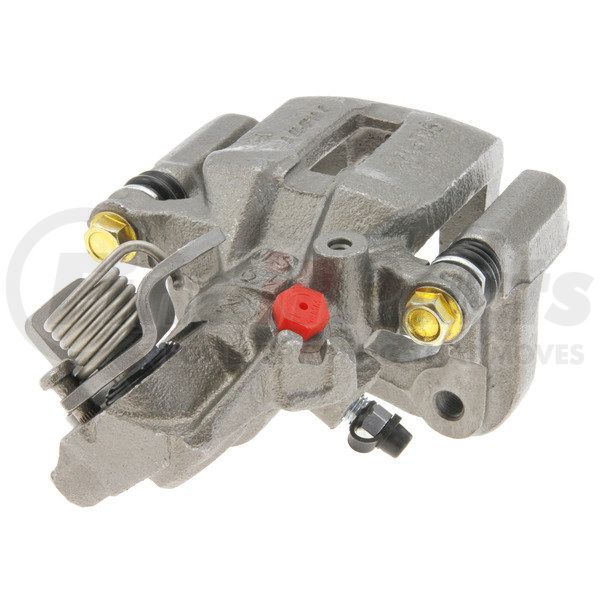

Centric Semi-Loaded Brake Caliper
Application Summary
Honda Prelude 2001-1992
Features & Benefits
- Remanufactured to meet the most exacting standards for reliable performance. 100% pressure tested & inspected to ensure proper operation & fitment. Treated with anti-corrosion finish. Comes without brake pads. Includes hardware and brackets
Centric Calipers; Centric Parts loaded caliper; Centric; Centric Parts; CentricParts; Semi-Loaded Caliper; Centric Semi-Loaded Calipers
Product Attributes
| Pad Wear Sensor Included | No |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Hardware Included | No |
| Casting Number | 9CLP14S; SO; |
| Pads Included | No |
| Caliper Casting Material | Cast Iron |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Friction Materials Standards Institute Pad Number | 10x.05370 |
| Bleeder Thread Diameter | 10.000 MM |
| 7609 | 1.339 IN |
| Inlet Fitting Type | Banjo |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| 9544 | M10-1.00 |
| 9558 | M10-1.25 |
| Air Gap [orely] | 100.5mm |
| Axle Leading/trailing [cntrc] | Leading |
| Bare Caliper Body# [cntrc] | 741.40521 |
| Bleeder Install Thread Count [cntrc] In | 6 |
| Bleeder Screw Included [cntrc] | Yes |
| Body Air Gap [cntrc] | 42.5mm |
| Bracket # [cntrc] | 743.40507 |
| Bracket Air Gap [cntrc] | 14.0mm |
| Bracket Required [cntrc] | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.40011 |
| Caliper Manufacturer [cntrc] | NISSIN |
| Car Position [cntrc] | Right Front |
| Finish [cntrc] | Rust Preventative |
| Hardware Kit# [cntrc] | 117.40020 |
| Mount Spread - Ctr2ctr [cntrc] | 86.0mm |
| Mount Thread Size [cntrc] Mm | M10-1.25 |
| New Or Ramanufactured [cntrc] | Remanufactured |
| Prod Notes [cntrc] | GO caliper, cable guide angled toward pads |
| Published Bore Size [cntrc] | 34 |
| Root Core# [cntrc] | 40521 |
| Rust Preventative Coating [cntrc] | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8412909085 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890114000 |
CENTRIC 141.40521 Cross Reference
We have 2 alternatives for the 141.40521 by CENTRIC:
Fits Vehicles
- Honda Prelude (1992-2001)
