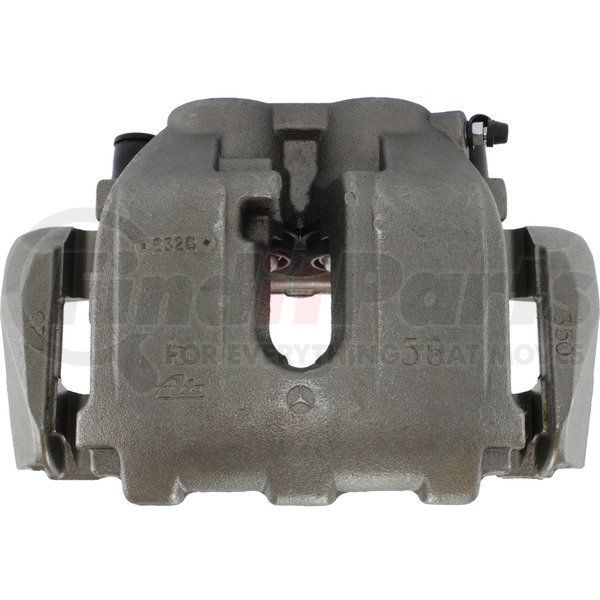

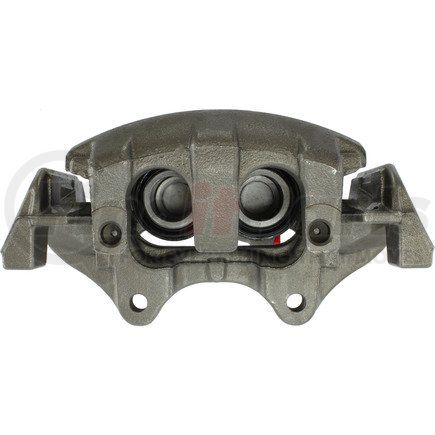

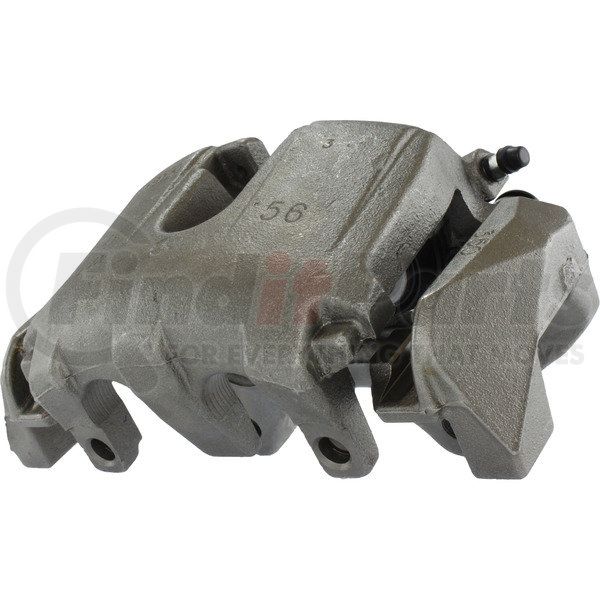

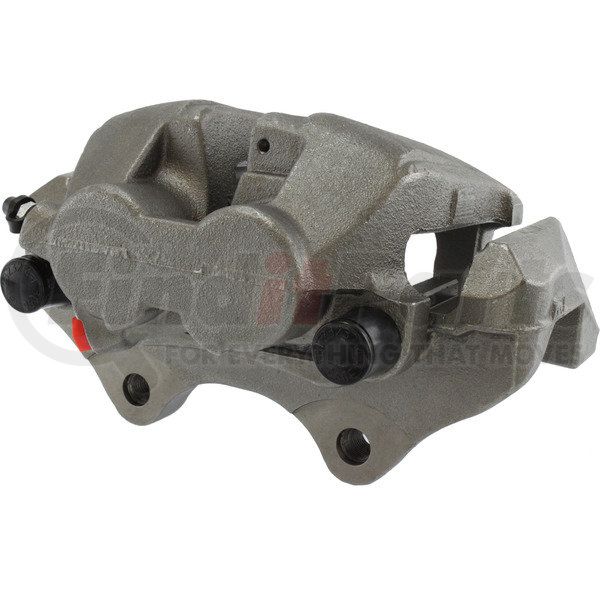

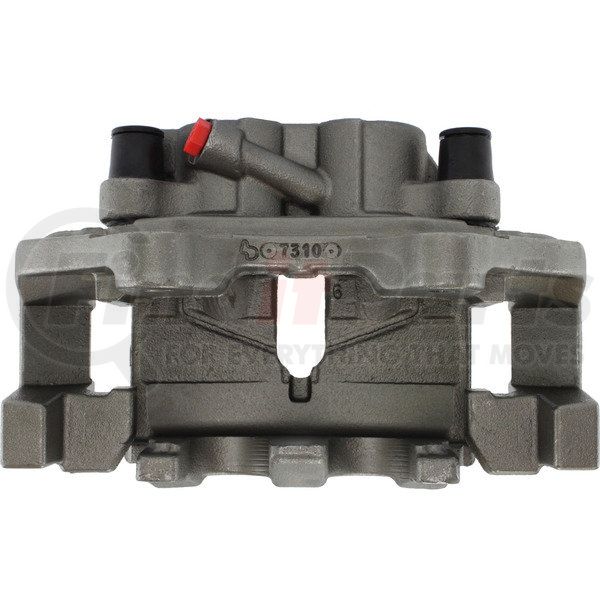

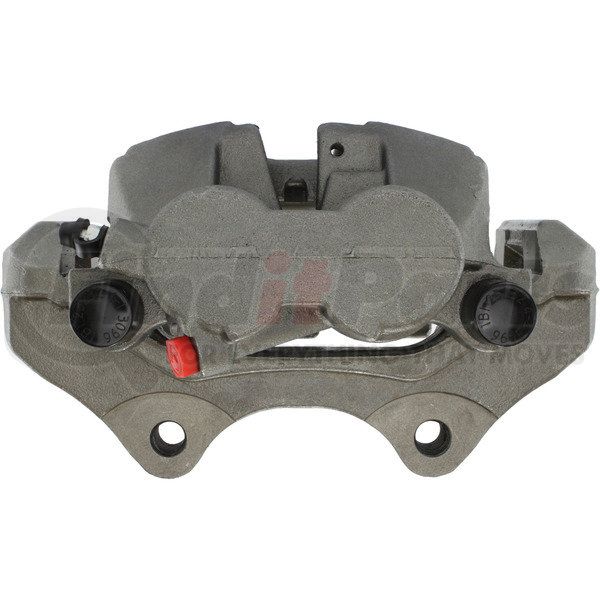

Centric 141.35159 - Semi-Loaded Brake Caliper
$6949
MSRP: $100.31
Save: $30.82
In stock
limited availability at this price!
. Learn more
CENTRIC part description
| Make | Mercedes-Benz |
| Model | GL320, GL350, GL450, GL550, ML320, ML350, ML450, ML500, ML550, R320, R350, R500 |
| Year | 2006 |
Product Description
Centric Semi-Loaded Brake Caliper
Application Summary
Mercedes-Benz GL320 2009-2007, GL350 2012-2010, GL450 2012-2007, GL550 2012-2008, ML320 2009-2008, ML350 2011-2008, ML450 2011-2010, ML500 2007-2006, ML550 2011-2008, R320 2009-2007, R350 2013-2006, R500 2007-2006
Features & Benefits
- Remanufactured to meet the most exacting standards for reliable performance. 100% pressure tested & inspected to ensure proper operation & fitment. Treated with anti-corrosion finish. Comes without brake pads. Includes hardware and brackets
Centric Calipers; Centric Parts loaded caliper; Centric; Centric Parts; CentricParts; Semi-Loaded Caliper; Centric Semi-Loaded Calipers
Product Attributes
| Pad Wear Sensor Included | No |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Hardware Included | No |
| Casting Number | 330; 56GD; 725; |
| Pads Included | No |
| Caliper Casting Material | Cast Iron |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Friction Materials Standards Institute Pad Number | 10x.11230 |
| Bleeder Thread Diameter | 10.000 MM |
| 7609 | 44.000 MM |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| 9544 | M10-1.00 |
| 9558 | M10-1.00 |
| Air Gap [orely] | 100.5mm |
| Bleeder Screw Included [cntrc] | Yes |
| Bracket # [cntrc] | na |
| Bracket Required [cntrc] | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.35039 |
| Caliper Manufacturer [cntrc] | ATE |
| Finish [cntrc] | Rust Preventative |
| Hardware Kit# [cntrc] | 117.34018 |
| Mount Thread Size [cntrc] Mm | M14-1.50 |
| New Or Ramanufactured [cntrc] | Remanufactured |
| Published Bore Size [cntrc] | 44 |
| Root Core# [cntrc] | 35159 |
| Rust Preventative Coating [cntrc] | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8412909085 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890409670 |
Fits Vehicles
- Mercedes-Benz ML450 (2010-2011)
- Mercedes-Benz GL350 (2010-2012)
- Mercedes-Benz GL550 (2008-2012)
- Mercedes-Benz ML550 (2008-2011)
- Mercedes-Benz ML350 (2008-2011)
- Mercedes-Benz ML320 (2008-2009)
- Mercedes-Benz GL320 (2007-2009)
- Mercedes-Benz R320 (2007-2009)
- Mercedes-Benz GL450 (2007-2012)
- Mercedes-Benz R500 (2006-2007)
- Mercedes-Benz R350 (2006-2013)
- Mercedes-Benz ML500 (2006-2007)
