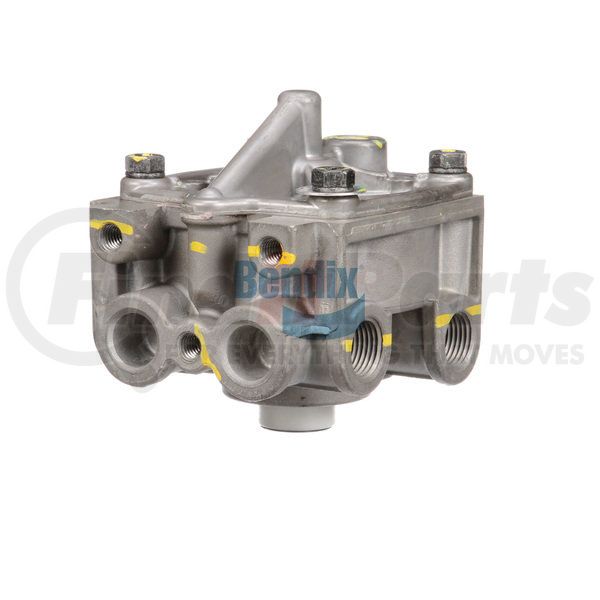

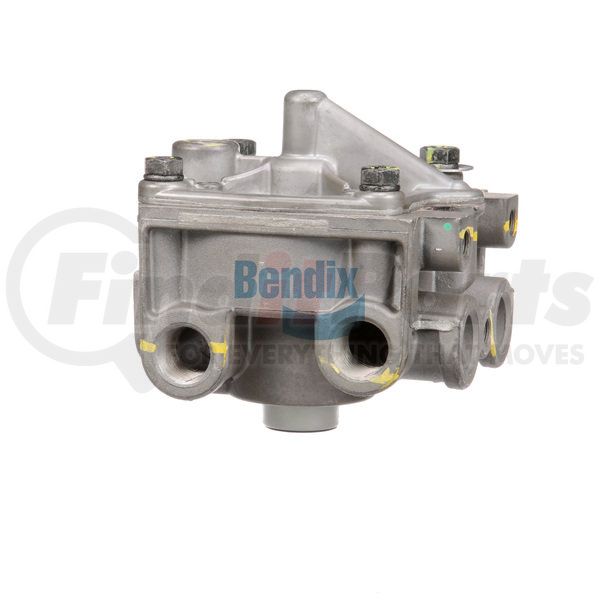

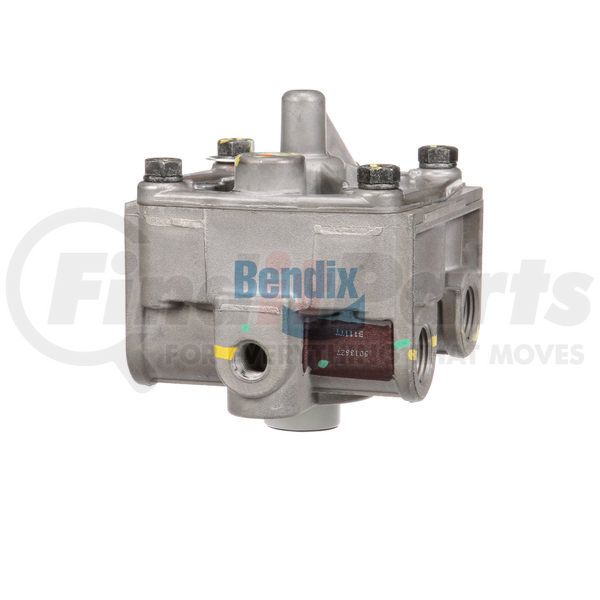

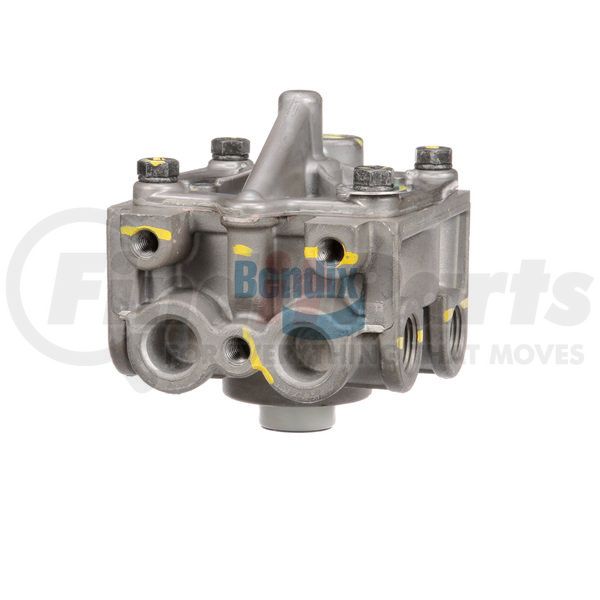

Bendix 801742 - R-12P Air Brake Relay Valve, Service New
$12599
MSRP: $259.85
Save: $133.86
In stock
limited availability at this price!
. Learn more
BENDIX part description
BENDIX® AIR BRAKE RELAY VALVE
| Mounting: | 3/8-16 UNC-2B (3x) |
| Supply Port 1: | 1/2-14 NPT |
| Supply Port 2: | 1/2-14 NPT |
| Maximum Operating Temperature: | 200 °F (93 °C) |
| Minimum Operating Temperature: | -40 °F (-40 °C) |
| Exhaust Port: | Dust Shield |
| Mounting Orientation CW from Front Face: | 180° |
| Body Configuration: | 2 SUP / 5 DEL (5H) |
| Control Secondary Service Port: | 1/4-18 NPT |
| Delivery Port 1: | 1/2-14 NPT |
| Delivery Port 2: | 1/2-14 NPT |
| Delivery Port 3: | Cored Closed |
| Delivery Port 4: | Cored Closed |
| Delivery Port 5: | 1/4-18 NPT |
| Crack Pressure: | 0.0 PSI |
| TMC Washer: | RD000 |
| Control Port Orientation CW from Front Face: | 0° |
| Internal Supply Passage to Cover: | Yes |
Bendix Air Brake Relay Valve
The Bendix air brake relay valve works as a remote controlled brake valve designed to deliver or release air to the chambers when control air is delivered to it from the foot brake valve or other source. Because of this critical function, this product is engineered using state-of-the-art technology to ensure maximum performance even under harsh operating conditions.
Features & Benefits
- Helps speed up the application and release of the air brakes
| Product Type | Relay Valve |
| Valve Type | R-12P |
Product Description
Relay Valve
Features & Benefits
- Has a zero differential to speed up control signal application and release on long towing trailers, dollies, long wheelbase tractors, and non-towing trailers
- A pilot relay valve that uses a supply air pressure load to quicken the valve’s response time
- With die-cast aluminum body and cover for superior durability
- Can be reservoir mounted and uses standard Bendix mounting brackets for ease of installation
- Engineered using state-of-the-art technology for guaranteed efficiency even under extreme conditions
- All Bendix valves are designed to enhance and improve vehicle performance
Courtesy of Bendix – All rights reserved
Bendix R-12P® Air Brake Relay Valve
The Bendix R-12P® air brake relay valve helps maintain the performance, reliability, and safety of your truck's air brake system. It is designed and tested to reflect today’s highest engineering standards and comply with all federal safety regulations.
Product Attributes
| New Or Remanufactured | New |
| Series | R-12P™ |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
