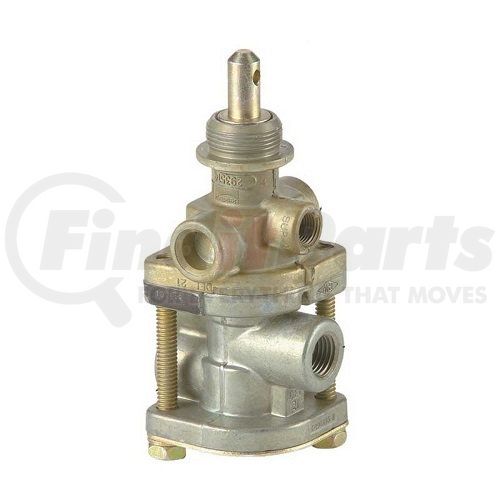

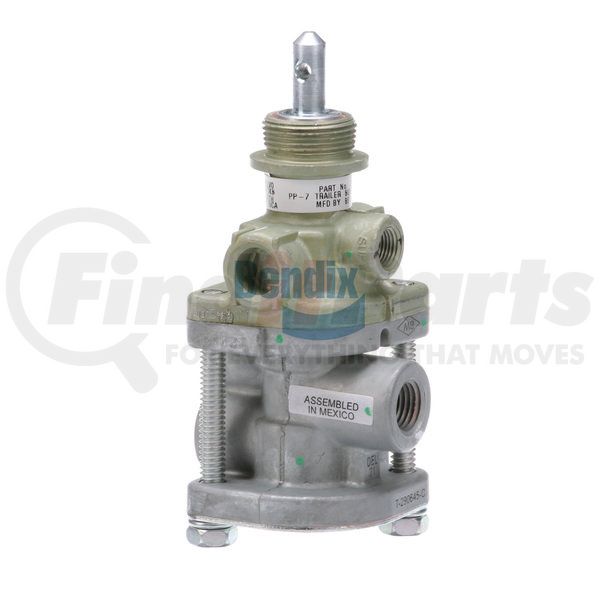

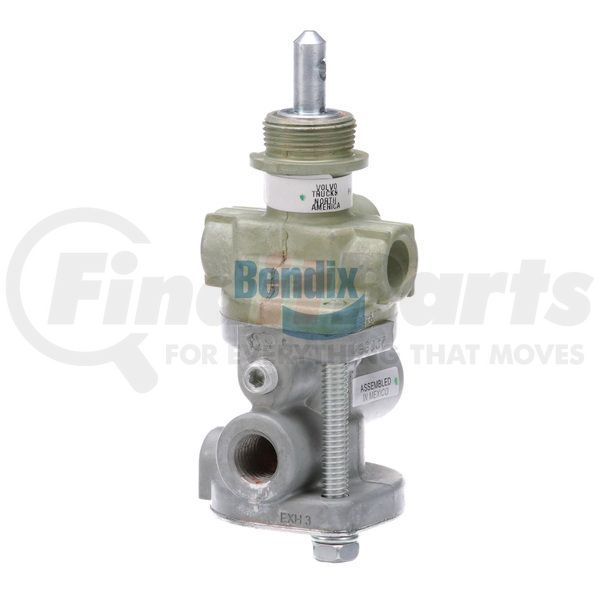

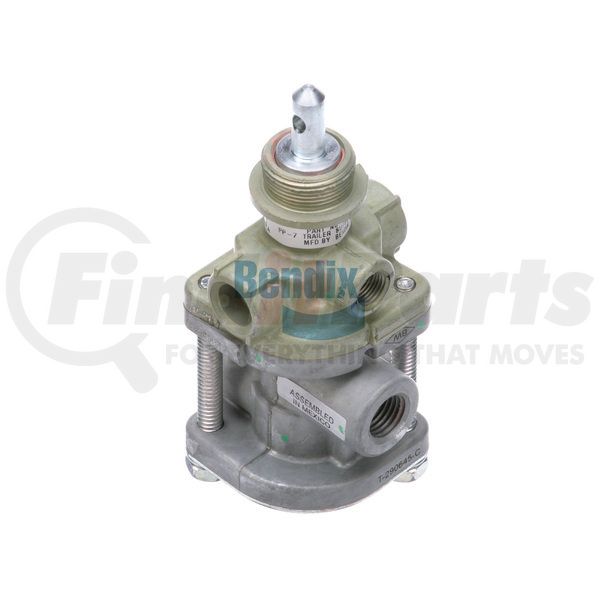

Bendix 288007N - PP-7 Supply Valve, Service New
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
BENDIX part description
Product Details
Bendix Valve 288007N
- Bendix Valve 288007N
- Genuine Bendix Valve
- FG#5633 TP Cntrl Ref 10299-49, 10650-48 WXREID
- Replaced Parts G717896 G721109 02-7078037 1050991 549095 701122 701169 79101-0001 79101-0004 79105-0001 79105-0002 3081492
Product Description
Supply Valve
Features & Benefits
- A highly reliable dash panel-mounted, push-pull operated control valve at a competitive price
- Operates in conjunction with the park control valve
- Helps synchronize the tractor and trailer emergency and parking brakes
- A combination of two non-modulating, on-off control valves in a single, compact package
- Consists of four pipe tapped ports, which are identified with cast-in, raised letters
- Has 1/8 inch N.P.T.F. dry seal pipe threads in control and supply ports and 1/4 inch N.P.T.F. dry seal pipe threads in exhaust and delivery ports
- Made of premium-quality materials for superior durability
- Built to withstand harsh operating conditions
- All Bendix valves are designed to improve vehicle performance and safety
Courtesy of Bendix – All rights reserved
Bendix PP-7 Trailer Brake Supply Valve
The Bendix PP-7 trailer brake supply valve is designed to provide in cab control for the tractor protection system. Because of this crucial function, Bendix manufactures this product following the strictest quality standards for maximum efficiency and performance.
Product Attributes
| Mounting Hardware Included | No |
| Mounting Hole Diameter | 7/8-20 in. UNEF-2A |
| Control Port Diameter | 1/8-27 in. NPT |
| Delivery Port Diameter | 1/4-18 in. NPT |
| Exhaust Port Diameter | Open |
| Maximum Operating Temperature | 200 °F (93 °C) |
| Minimum Operating Temperature | -40 °F (-40 °C) |
| New Or Remanufactured | New |
| Notes | Plunger/Button Height: 1.14 in.; Plunger Diameter: 0.311 in. |
| Release Pressure | 40 PSI |
| Series | PP-7™ |
| Supply Port Diameter | 1/8-27 in. NPT |
| Trailer Override Pressure | 26 ± 6 PSI |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| VMRS Code | 013010406 |
Part Interchanges
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
