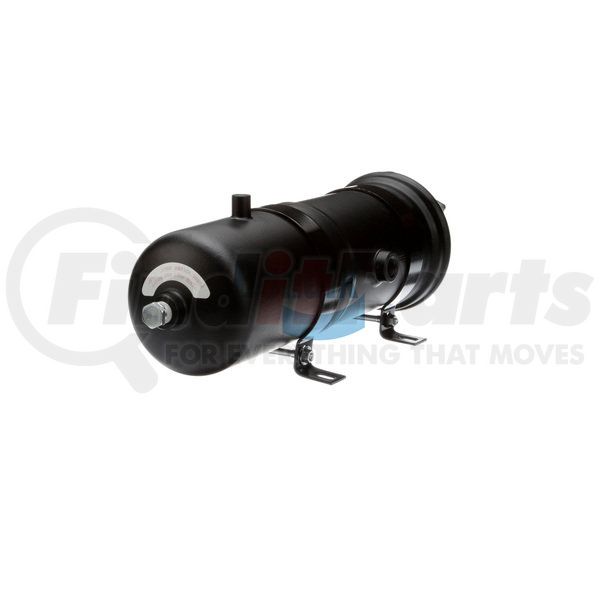

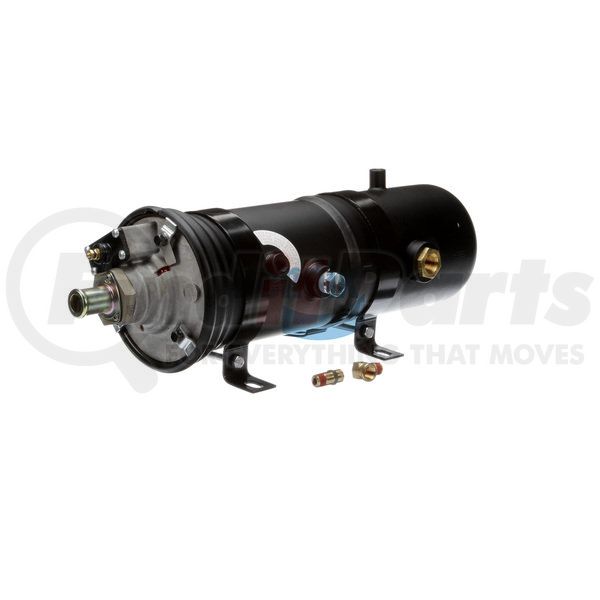

Bendix 288595N - AD-2 Air Brake Dryer - with Drain Valve, Service New
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
BENDIX part description
BENDIX® AIR BRAKE DRYER
| Mounting: | .82 in. x .44 in. (4x) |
| Supply Port 1: | 1/2-14 NPT (Plugged) |
| Supply Port 2: | 1/2-14 NPT |
| Delivery Port: | 1/2-14 NPT |
| Maximum Operating Temperature: | 150 °F (66 °C) |
| Minimum Operating Temperature: | -65 °F (-53 °C) |
| Mounting Angle: | 90° |
| Supply Port 1 Angle: | 0° |
| Control Unloader Port: | 1/4-18 NPTF |
| Control Unloader Port Angle: | 180° |
| Extended Purge Port: | 1/2-14 NPT (Plugged) |
| Safety Valve Port: | 1/4-18 NPT |
| Safety Valve Port Angle: | 345° |
| Safety Valve Opening Pressure: | 200 PSI |
| Heater Rating: | 120W / 24V |
| Heater Connector Type: | #10-32 UNF-3A THD |
Bendix Air Brake Dryer
The Bendix AD-SP air brake dryer makes sure only clean, dry air gets into the different components of your air brake system. With this purge air dryer, you don’t have to manually drain the reservoirs on a daily basis just to keep your air brake system working at its best.
Features & Benefits
- Extends the service life of the air brake system
- Helps prevent air brake system freeze up, avoid costly downtime, and reduce maintenance costs
- Extends the service life of the air brake system
- Helps prevent air brake system freeze up, avoid costly downtime, and reduce maintenance costs
| Product Type | AD-2 |
Product Description
Air Dryer
Features & Benefits
- Designed to collect and remove moisture and solid, liquid, and vapor contaminants from the air before entering the air brake system
- Consists of two cylindrical steel stampings welded together and two inlet ports, one reservoir port, and one purge volume port for piping convenience
- With a safety valve mounted on the housing for added protection against excessive pressure build-up
- Has a heater and thermostat assembly (operating range between 45°F and 85°F) that helps prevent freeze-up when used during severe winter
- Offers ease of serviceability since replaceable assemblies can be serviced without the need to remove the air dryer from the vehicle
- Extends the service life of the air brake components
- Helps avoid costly downtime and reduce maintenance costs
Courtesy of Bendix – All rights reserved
Bendix AD-2 Air Brake Dryer
The Bendix AD-2 air brake dryer makes sure only clean, dry air gets into the different components of your air brake system. With this product, you don’t have to manually drain the reservoirs on a daily basis just to keep your air brake system working at its best.
Product Attributes
| New Or Remanufactured | New |
| Series | AD-2® |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421398015 |
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
