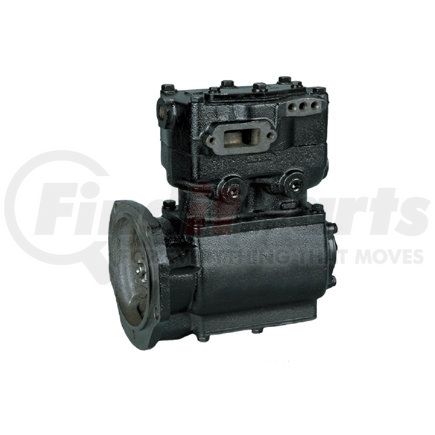

Name: Haldex EL16051X Reman Compressor
SKU: el16051x
Price: 398.99 USD
Availability: InStock

HALDEX part description

Specifications:

Series/Model:	EL1600
Mounting Type:	Flange Mount
Block Rotation Direction:	Left
Bore Diameter:	2.75 in.
Cooling Type:	Water
Discharge Type:	Flange - Top
External Shaft Length:	0.19 in.
Head Rotation:	Right
Height:	12.19 in.
Length:	10.45 in.
OEM Number:	NT7205V
Operation:	Gear Driven
Rated Displacement:	16.1 CFM at 1250 RPM
Related Part:	RN26GY, RNT26, RNT26A, SN144AP
Stroke Length:	1.87 in.
Width:	6.84 in.
Freight Class:	60
UPC (GTIN):	767653026084
VMRS Code:	013009001
Harmonized Tariff Code:	8414802055

Haldex Like-Nu EL1600 DDC Compressor

The Haldex Like-Nu EL1300 DDC compressor is designed to effectively pump compressed air into the air reservoirs before it is used by your truck’s air brake system. It went through rigorous remanufacturing and testing processes to ensure it performs according to the original manufacturer's specifications.

Features & Benefits

Includes the necessary gaskets for a quick, trouble-free installation
Product’s port orientation is viewed from the front
Stringently evaluated to guarantee proper fit and function
A cost-effective replacement for your worn or damaged air brake compressor

Product Description

Remanufactured Compressor 1600 Detroit Diesel 0°

Application Summary

DDC 0° Engines

Features & Benefits

Includes the necessary gaskets for a quick, trouble-free installation
Product’s port orientation is viewed from the front
Stringently evaluated to guarantee proper fit and function
A cost-effective replacement for your worn or damaged air brake compressor

Haldex Like-Nu EL1600 DDC Compressor

Product Attributes

Block Rotation	Left
Bore Diameter	2-3/4 in.
Cooling Type	Water
Discharge Type	Flange - Top
External Shaft Length	0.19 in.
Freight Class	60
Head Rotation	Right
Height	12.19 in.
Length	10.45 in.
Mounting Type	Flange Mount
New Or Remanufactured	Remanufactured
Operation	Gear Driven
Rated Displacement	16.1 CFM @ 1250 RPM
Series	EL1600
Stroke Length	1.87 in.
Width	6.84 in.

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8414802055
Harmonized Tariff Code (HTS)	8414802055
Remanufactured Part	Y
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653026084
VMRS Code	013009001

Part Interchanges

HALDEX EL16051X Cross Reference

We have 1 alternatives for the EL16051X by HALDEX:

013-009-001
