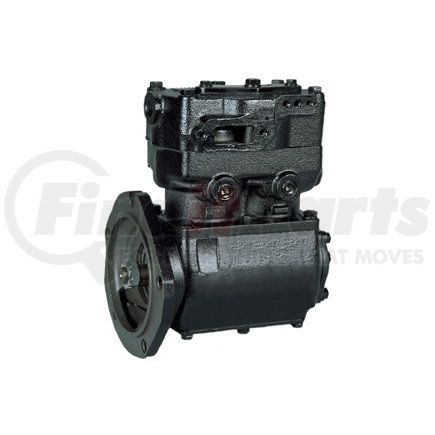

Haldex EL13160X - Comp 1300 Det Dsl 45
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
HALDEX part description
Specifications:
| Series/Model: | EL1300 |
| Mounting Type: | Flange Mount |
| Block Rotation Direction: | Right |
| Bore Diameter: | 2.75 in. |
| Cooling Type: | Water |
| Discharge Type: | Flange - Top |
| External Shaft Length: | 0.61 in. |
| Head Rotation: | Left |
| Height: | 12 in. |
| Length: | 10.11 in. |
| OEM Number: | N7016 |
| Operation: | Gear Driven |
| Rated Displacement: | 13.0 (EL1300) and 16.1 (EL1600) CFM at 1250 RPM |
| Related Part: | RN26GY, RNT26, RNT26A, SN144M |
| Stroke Length: | 1.5 in. |
| Width: | 7.1 in. |
| Freight Class: | 60 |
| UPC (GTIN): | 767653026008 |
| VMRS Code: | 013009001 |
| Harmonized Tariff Code: | 8414802055 |
Haldex Like-Nu EL1300 DDC Compressor
The Haldex Like-Nu EL1300 DDC compressor is designed to effectively pump compressed air into the air reservoirs before it is used by your truck’s air brake system. It went through rigorous remanufacturing and testing processes to ensure it performs according to the original manufacturer's specifications.
Features & Benefits
- Includes the necessary gaskets for a quick, trouble-free installation
- Product’s port orientation is viewed from the front
- Stringently evaluated to guarantee proper fit and function
- A cost-effective replacement for your worn or damaged air brake compressor
Product Description
Remanufactured Compressor 1300 Detroit Diesel 45
Application Summary
DDC 45° Engines
Features & Benefits
- Includes the necessary gaskets for a quick, trouble-free installation
- Product’s port orientation is viewed from the front
- Stringently evaluated to guarantee proper fit and function
- A cost-effective replacement for your worn or damaged air brake compressor
Haldex Like-Nu EL1300 DDC Compressor
The Haldex Like-Nu EL1300 DDC compressor is designed to effectively pump compressed air into the air reservoirs before it is used by your truck’s air brake system. It went through rigorous remanufacturing and testing processes to ensure it performs according to the original manufacturer's specifications.
Product Attributes
| Block Rotation | Right |
| Bore Diameter | 2-3/4 in. |
| Cooling Type | Water |
| Discharge Type | Flange - Top |
| External Shaft Length | 0.61 in. |
| Freight Class | 60 |
| Head Rotation | Left |
| Height | 12 in. |
| Length | 10.11 in. |
| Mounting Type | Flange Mount |
| New Or Remanufactured | Remanufactured |
| Operation | Gear Driven |
| Rated Displacement | 13.0 (EL1300) and 16.1 (EL1600) CFM @ 1250 RPM |
| Series | EL1300 |
| Stroke Length | 1-1/2 in. |
| Width | 7.1 in. |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8414802055 |
| Harmonized Tariff Code (HTS) | 8414802055 |
| Remanufactured Part | Y |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653026008 |
| VMRS Code | 013009001 |
Part Interchanges
- E-MDEL13160X
- 289543X
- N7016
- 101633
- P-66992
- 2064860
- E1HT2875JB
- 411708C91
- 6811300315
- 5100886
- 70001-0002
- KN13160N
- Euclid E-MDEL13160X
- MIDLAND 289543X
- PRIOR N7016
- Bendix 101633
- DANA P-66992
- GMC 2064860
- Ford E1HT2875JB
- NAVISTAR 411708C91
- FREIGHTLINER 6811300315
- Detroit Diesel 5100886
- Volvo GM Heavy Truck 70001-0002
- NAPA KN13160N
- EUCLID E-MDEL13160X
- MIDLAND EL13160
- MIDLAND EL13160X
- MIDLAND KN13160
- Midland KN13160N
- Midland KN13160X
- Midland KNT13160
- MIDLAND N7016
- BENDIX 101633
- BENDIX 101656
- Bendix 102004
- BENDIX 102090
- Bendix 282012
- Bendix 284106
- BENDIX 284184
- BENDIX 284973
- Bendix 284974
- BENDIX 284975
- BENDIX 285200
- BENDIX 285252
- BENDIX 285458
- BENDIX 285899
- BENDIX 285991
- Bendix 285992
- BENDIX 285993
- Bendix 285995
- Bendix 286441
- BENDIX 286455
- Bendix 286456
- Bendix 286457
- BENDIX 286542
- BENDIX 286543
- Bendix 286660
- Bendix 287792
- BENDIX 287793
- FORD E1HT2875JB
- NAVISTAR ZZEL13160
- NAVISTAR ZZEL13160X
- MIDLAND KN13160N
- MIDLAND KN13160X
- MIDLAND KNT13160
- BENDIX 102004
- BENDIX 282012
- BENDIX 284106
- BENDIX 284974
- BENDIX 285992
- BENDIX 285995
- BENDIX 286441
- BENDIX 286456
- BENDIX 286457
- BENDIX 286660
- BENDIX 287792
HALDEX EL13160X Cross Reference
We have 2 alternatives for the EL13160X by HALDEX:
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
