CENTRIC part description

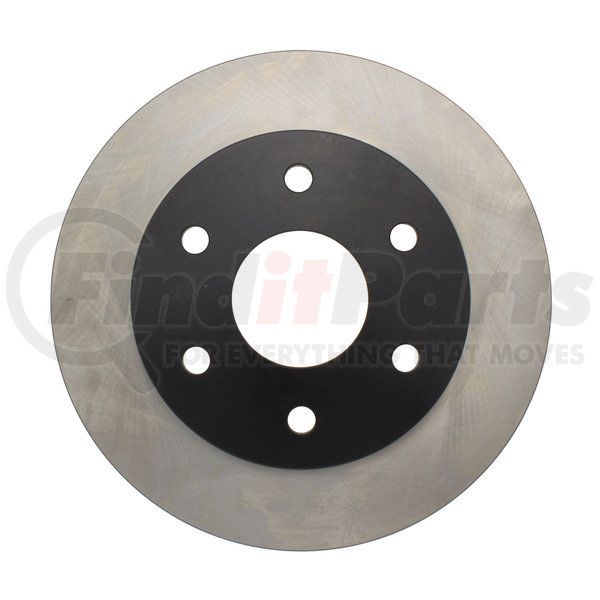

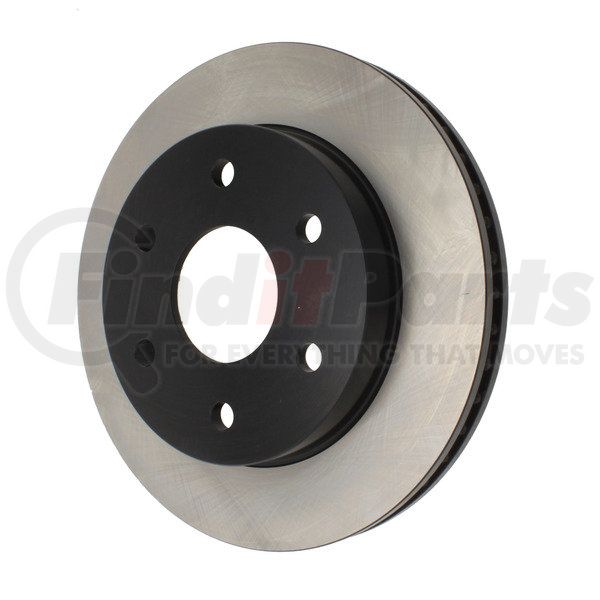

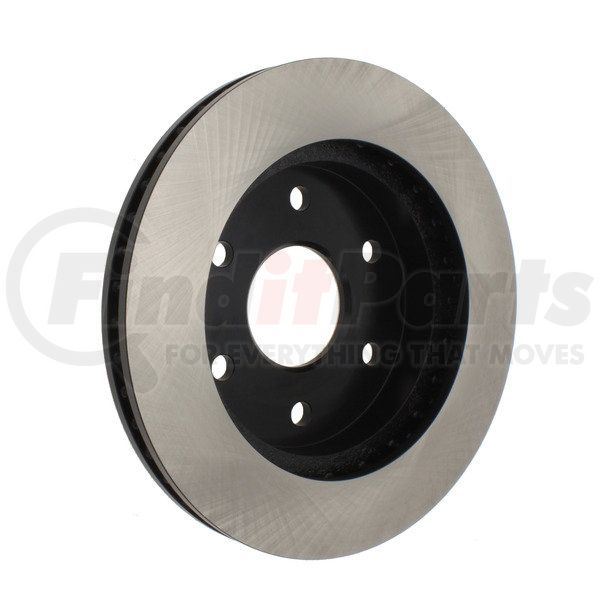

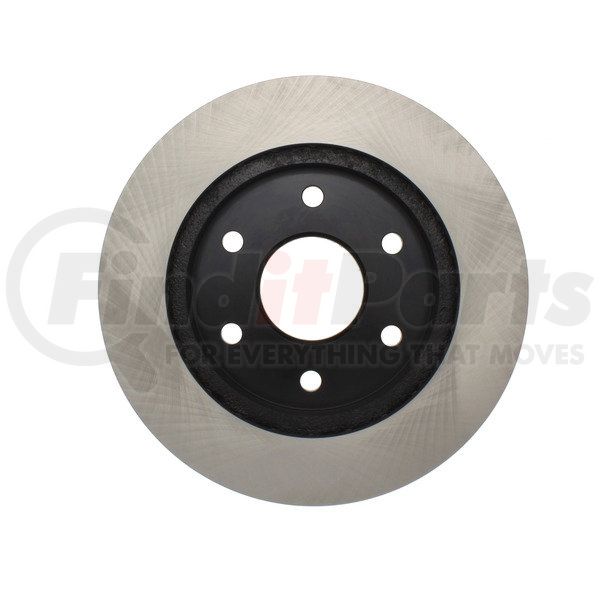

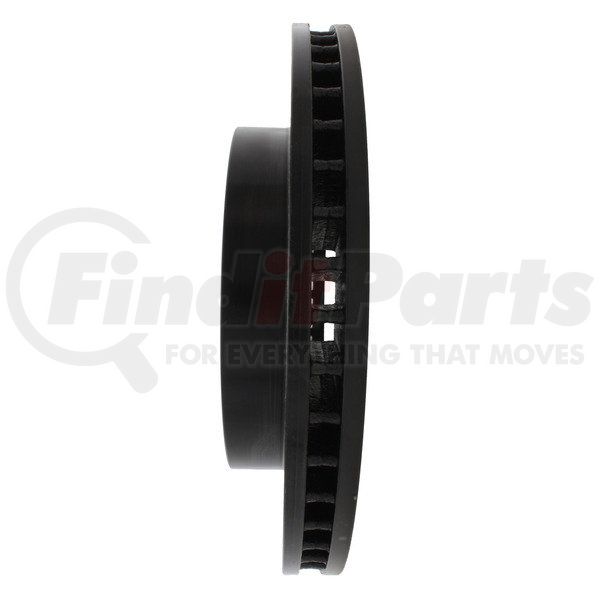

Premium Brake Rotor GLT
Make Cadillac, Chevrolet, GMC
Model Astro, Avalanche 1500, Escalade, Escalade ESV, Escalade EXT, Express 1500, Express 2500, Safari, Savana 1500, Savana 2500, Sierra 1500, Sierra 1500 Classic, Sierra 1500 HD, Silverado 1500, Silverado 1500 Classic, Silverado 1500 HD, Suburban 1500, Tahoe, Yukon, Yukon XL 1500
Year 1999

Product Description

Centric Premium Brake Rotor

Application Summary

Cadillac Escalade 2006-2002, Escalade ESV 2006-2003, Escalade EXT 2006-2002, Chevrolet Astro 2005-2003, Avalanche 1500 2006-2002, Express 1500 2008-2003, Express 2500 2006-2003, Silverado 1500 2006-1999, Silverado 1500 Classic 2007, Silverado 1500 HD 2001, Suburban 1500 2006-2000, Tahoe 2006-2000, GMC Safari 2005-2003, Savana 1500 2008-2003, Savana 2500 2006-2003, Sierra 1500 2006-1999, Sierra 1500 Classic 2007, Sierra 1500 HD 2001, Yukon 2006-2000, Yukon XL 1500 2006-2000

Features & Benefits

  • Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life

Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake

Product Attributes

Discard Thickness 27.200 MM
Nominal Thickness 29.100 MM
Hat Finish Coated
Overall Height 58.200 MM
Outside Diameter 305.000 MM
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 78.700 MM
Mounting Bolt Hole Circle Diameter 139.700 MM
Stud/Lug Hole Quantity 6
Stud/Lug Hole Diameter 16.400 MM
California Proposition 65 Text [basic] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating
Misc Holes [cntrc] 0
Vane Style [cntrc] Straight
Weight [cntrc] Kgs 8.980
Weight [cntrc] Lbs 19.750

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00805890036241

Part Interchanges

CENTRIC 120.66040 Cross Reference

We have 3 alternatives for the 120.66040 by CENTRIC:

Fits Vehicles

  • Cadillac Escalade EXT (2002-2006)
  • Cadillac Escalade ESV (2003-2006)
  • GMC Sierra 1500 HD (2001)
  • GMC Sierra 1500 Classic (2007)
  • Chevrolet Silverado 1500 Classic (2007)
  • Chevrolet Silverado 1500 HD (2001)
  • GMC Yukon XL 1500 (2000-2006)
  • GMC Yukon (2000-2006)
  • GMC Sierra 1500 (1999-2006)
  • GMC Savana 2500 (2003-2006)
  • GMC Safari (2003-2005)
  • Chevrolet Tahoe (2000-2006)
  • Chevrolet Suburban 1500 (2000-2006)
  • GMC Savana 1500 (2003-2008)
  • Chevrolet Silverado 1500 (1999-2006)
  • Chevrolet Avalanche 1500 (2002-2006)
  • Chevrolet Astro (2003-2005)
  • Cadillac Escalade (2002-2006)
  • Chevrolet Express 2500 (2003-2006)
  • Chevrolet Express 1500 (2003-2008)
