Haldex KN28500RX - Relay Valve
$3749
MSRP: $74.61
Save: $37.12
In stock
limited availability at this price!
. Learn more
HALDEX part description
HALDEX RG2 RELAY VALVE
Remanufactured RG2 2-Port Trailer Relay Valve - CoreFree™- A fast relay Used to Apply and Release Service Brakes on Tractor or Trailer
- Cracking pressure: 5.6 +/- 1.0 PSI.
- Compact size.
- Control Port 1/4".
- Two-Port Delivery
- Two mounting holes, .34 diameter on 1.50 inch centers.
- Cover may be rotated without affecting warranty or performance.
- Control position is in relationship to delivery ports.
- Approximate Weight: 1.5 lbs.

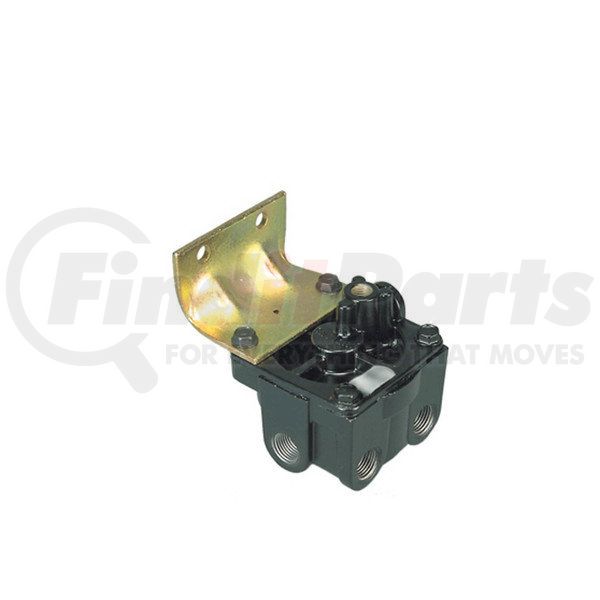

- Picture illustrates 90° control port position. 0° would locate port in line with delivery port "D".
- Repair Kit use part number RN10HM.
Technical Specifications:
| Supply A (refer to image): | 3/8" in. |
| Supply B (refer to image): | 3/8" in. |
| Delivery C (refer to image): | 3/8" in. |
| Delivery D (refer to image): | 3/8" in. |
| Control Position: | 90° |
| Plugs Included: | 1 @ 3/8" in. |
| OEM Part Number: | N30108BC |
| Core Group: | 225 |
| Width: | 3-1/2" in. |
| Length: | 3-1/2" in. |
| Height: | 3-5/8" in. |
| Contol Port: | 1/4" in. |
| Cracking Pressure: | 5.6 ± 1.0 PSI |
| Mounting Holes (2): | 0.34" diameter on 1.50" centers |
| Approximate Weight: | 1.5 lbs. |
Haldex Air Brake Relay Valve
Get improved air brake system performance with the Haldex air brake relay valve. This remanufactured RG2 relay valve CoreFree™ is designed to provide supreme levels of quality, performance, and reliability.
Features & Benefits
- Designed as a fast relay that can be used to apply and release service brakes on tractor or trailer
- Compact in size for easier installation
- Product’s cover may be rotated without affecting the warranty or performance
- Valve’s control position is in relationship to delivery ports
Product Description
Reman RG2 Relay Valve - CoreFree™
Features & Benefits
- Designed as a fast relay that can be used to apply and release service brakes on tractor or trailer
- Compact in size for easier installation
- Product’s cover may be rotated without affecting the warranty or performance
- Valve’s control position is in relationship to delivery ports
Haldex Air Brake Relay Valve
Get improved air brake system performance with the Haldex air brake relay valve. This remanufactured RG2 relay valve CoreFree™ is designed to provide supreme levels of quality, performance, and reliability.
Product Attributes
| Control Port Diameter | 1/4 in. |
| Delivery Port Diameter | 2 @ 3/8 in. |
| Freight Class | 70 |
| Height | 0.63 in. |
| Length | 3.50 in. |
| Mounting Hole Diameter | 2 @ 0.34 in. on 1.5 in. Centers |
| New Or Remanufactured | Remanufactured |
| Notes | CoreFree™, Includes (1) Plug @ 0.375 in. |
| Opening Pressure | 5.6 ± 1.0 PSI |
| Port Position | 90° |
| Port Quantity | 5 |
| Recommended Use | For use on Tractors and Trailers |
| Series | RG2 |
| Supply Port Diameter | 2 @ 3/8 in. |
| Width | 3.50 in. |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | Y |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653273518 |
| VMRS Code | 013010009 |
HALDEX KN28500RX Cross Reference
We have 3 alternatives for the KN28500RX by HALDEX:
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
