Haldex 289182RX - Valve Qr 2Way Chk
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.

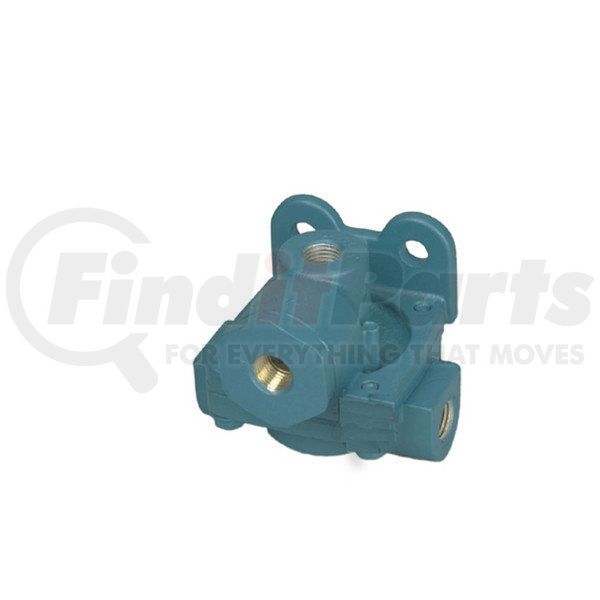

HALDEX part description
HALDEX QUICK RELEASE VALVE
Remanufactured Bendix® QR-1C CoreFree™- Functions as a Quick Release Valve for the emergency side of the spring brakes
- Double Check Valve prevents simultaneous application of the emergency side of the spring brakes (Anti-Compounding)
- Can use KN32040
- Supply and delivery differential is 1 PSI max
- KN32040 Valve may also be used for this application
- Crack Pressure 1 PSI
- Approximate Weight 1.2 lbs.
- Repair Kit not available
Technical Specifications:
| Supply: | 1/4" |
| Delivery: | 1/4" |
| Crack Pressure: | 1 PSI |
| Approximate Weight: | 1.2 lbs. |
Haldex Bendix® QR-1C CoreFree™ Air Brake Quick Release Valve
Maintain high air brake performance with a premium-quality Haldex Bendix® QR-1C CoreFree™ air brake quick release valve. Rebuilt by a brand with a solid reputation in manufacturing top-quality air brake system components, this remanufactured valve effectively exhausts brake chamber air pressure through itself rather than through the controlling valve and speeds up brake release. It does this by reducing the distance the air would have to travel back to the brake valve exhaust port.
Features & Benefits
- Highly resistant to corrosion and harsh weather
- Kit is not available for this product
- Stringently evaluated to ensure reliability, performance, and high efficiency
- All Haldex valves are designed for trouble-free air brake system repair and maintenance
Product Description
Remanufactured Bendix® QR-1C CoreFree™
Features & Benefits
- Highly resistant to corrosion and harsh weather
- Kit is not available for this product
- Stringently evaluated to ensure reliability, performance, and high efficiency
- All Haldex valves are designed for trouble-free air brake system repair and maintenance
Haldex Bendix® QR-1C CoreFree™ Air Brake Quick Release Valve
Maintain high air brake performance with a premium-quality Haldex Bendix® QR-1C CoreFree™ air brake quick release valve. Rebuilt by a brand with a solid reputation in manufacturing top-quality air brake system components, this remanufactured valve effectively exhausts brake chamber air pressure through itself rather than through the controlling valve and speeds up brake release. It does this by reducing the distance the air would have to travel back to the brake valve exhaust port.
Product Attributes
| Delivery Port Diameter | 1/4 in. |
| Freight Class | 70 |
| Opening Pressure | 1 PSI |
| Supply Port Diameter | 1/4 in. |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | Y |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653290317 |
| VMRS Code | 013010000 |
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
