Horton 99A9957 - DRIVE FAN & MTG A
$2,15249
MSRP: $5,471.24
Save: $3,318.75
In stock
limited availability at this price!
. Learn more
HORTON part description

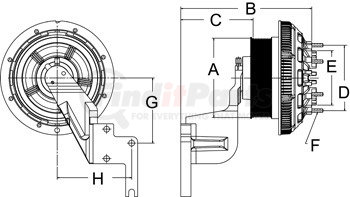

| Service # | OEM # | A | A1 | B | CL3 | C | D | E | F | F1 | G | H | J | TMfg |
| 99A9957 | * 98A9957 |
7.28 | - | 12.06 | 12 PK | 6.66 | 6.00 | 5.00 | 1.05 | .312-18 | 5.98 | 6.86 | - | INTERNATIONAL |
| Col. Label | Value Name |
|---|---|
| A | BACK PULLEY DIAMETER |
| A1 | FRONT PULLEY DIAMETER |
| B | OVERALL LENGTH |
| CL3 | BELT CONFIGURATION |
| C | BELT GROOVE LOCATION |
| D | BOLT CIRCLE |
| E | FAN PILOT DIAMETER |
| F | FAN BLADE STUD LENGTH |
| F1 | Stud Thread Size |
| G | VERTICAL MOUNTING DISTANCE |
| H | HORIZONTAL MOUNTING DISTANCE |
| J | CENTER OF JB TO TOP RIGHT MOUNTING HOLE |
| TMfg | Truck Manufacturer |
Product Description
DM Advantage Two-Speed Fan Clutch
Application Summary
INTERNATIONAL
Features & Benefits
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance
Product Attributes
| BACK PULLEY DIAMETER | 7.280708661 IN |
| BELT CONFIGURATION | 12 PK |
| Belt Groove Location | 6.664566929 IN |
| Bolt Circle | 6 in |
| Fan Blade Stud Length | 1.047244094 IN |
| FAN PILOT DIAMETER | 4.998031496 IN |
| Heavy Duty | Yes |
| HORIZONTAL MOUNTING DISTANCE | 6.858267717 IN |
| Overall Length | 12.06141732 IN |
| Stud Thread Size | .312-18 IN |
| VERTICAL MOUNTING DISTANCE | 5.983858268 IN |
Additional Information
| OEM's Part Number | 98A9957 |
| VMRS Code | 042003131 |
Part Interchanges
HORTON 99A9957 Cross Reference
We have 2 alternatives for the 99A9957 by HORTON:
Horton® is a world-renowned manufacturer of high-grade engine cooling solutions for the trucking industry for over 65 years. This company believes that improved airflow translates to better performance, reduced emissions, more significant fuel savings, and happy customers. Horton offers best-in-class fans, fan drives, and clutches for on-highway big rigs like heavy-, medium-, and light-duty trucks, R.V.s, buses, refuse vehicles, commercial vehicles, and other applications. This company also takes pride in its off-highway and heavy-duty products, including sweepers, agricultural tractors, mining trucks, aerial work platforms, excavators, generators, articulated vehicles, and industrial compressors. Made to operate in harsh environments, these Horton products withstand temperature extremes, dust, dirt, chemicals, as well as stop-and-go driving. For truck parts that consume less fuel, last longer, and run quieter, trust no other brand than Horton.
