Premium Guard PF6397 -
- Part Number
- PF6397
- Manufacturer
- PREMIUM GUARD
- Description
- details
$1349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
PREMIUM GUARD part description
Product Description

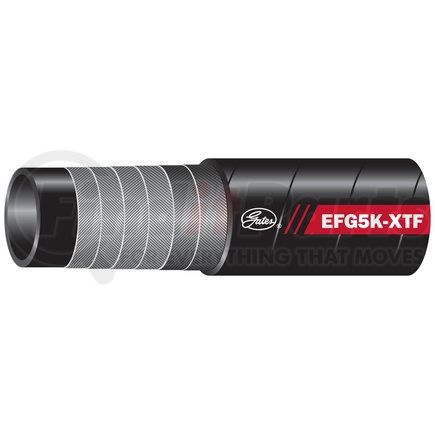

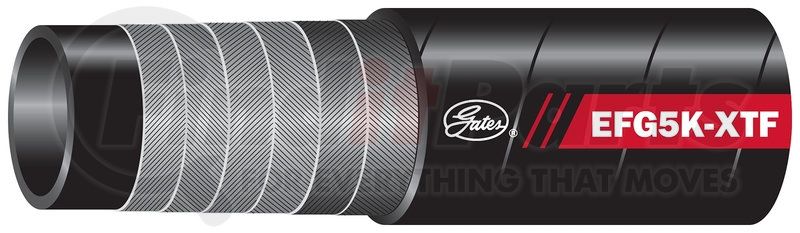

EFG5K Spiral Wire Hose - SAE 100R13 - XtraTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral Max [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Tested to industry-leading 1,000,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Product Attributes
| Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Steel |
| Cover Color | Black |
| Length | 200 FT |
| Inside Diameter | .625 IN |
| Maximum Working Pressure | 5000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Outside Diameter | 1.09 IN |
| Burst Pressure | 20000 PS |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Hose Material | Nitrile - Type C |
| 9453 | 100R13 |
| 9856 | GlobalSpiral, Stainless Steel S |
| 9879 | 4 IN |
| 9941 | 10 |
| 9953 | 3862 Type R13 |
| 9954 | 856 R13 |
| Hose Pressure Description | Extremely High Pressure Hose |
| Industrial Description | 10EFG5K-XTFXLL |
| Product Type | EFG5K Spiral Wire Hose - SAE 100R13 - XtraTuff Cover |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Hydraulic Hose |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| UPC | 00770075706656 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
Part Interchanges
The Gates Corporation® helps keep the industry running by providing top-of-the-line solutions that minimize downtime and lost production. From trucking and automotive to mining and specialty manufacturing, Gates provides best-in-class belts and power transmission solutions that maximize the production and capabilities of top companies, making them outshine the competition. Gates Corporation had its beginnings in 1911, when Charles C. Gates purchased a tire and rubber company and established a shop in Denver, Colorado. More than 100 years later, the small, family-owned company has grown into a global leader, employing over 15,000 people in its 100 facilities in 30 countries. Gates Corporation’s product portfolio includes power transmission parts, fluid power solutions, and many other products for various applications including automotive, construction, bicycles, consumer equipment, heavy-duty industrial equipment, food and beverage, and HVAC equipment.
