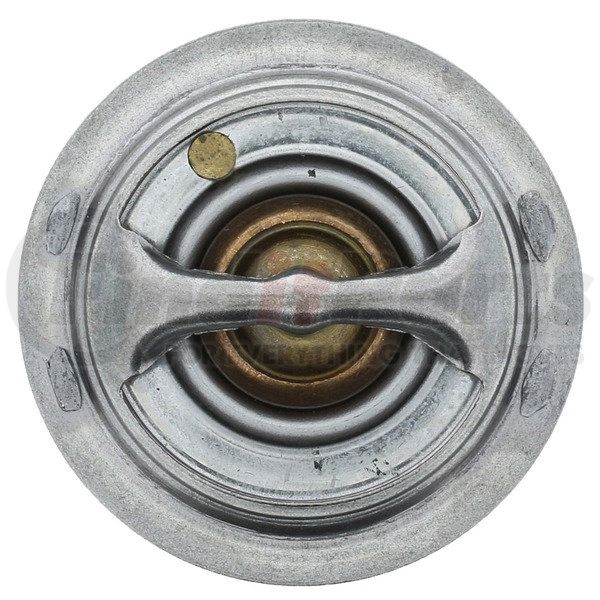

Motorad 480-192 - Thermostat
$2749
In stock
limited availability at this price!
. Learn more
MOTORAD part description
Product Description
Thermostat-192 Degrees
Application Summary
(2007-12) Ford Mustang (5.4L), (2013-14) Ford Mustang (5.8L), (2017-18) Ford GT (3.5L),
Features & Benefits
- High grade stainless steel and copper construction
- Meets or exceeds OEM standards
- Consistent and precise response to cooling system needs
- Original equipment design for worry-free direct fit replacement
- 100% tested and calibrated
Thermostat, Coolant Thermostat, OE Thermostat, Good Thermostat, Thermostat w/ seal, Engine Coolant Thermostat, Engine Thermostat, Cooling Thermostat, Cooling System Thermostat
Product Attributes
| Sealing Flange Outside Diameter | 2.125 |
| Height Between Flanges | 1.62 |
| Type | Standard |
| Height | 2.35 |
| Gasket Or Seal Included | No |
| Jiggle Pin Weep Hole | Yes |
| Seal Type | O-Ring |
| Start to Open Temperature | 192 |
| Bolts Included | No |
| Bypass Diameter | 1.38 in |
| Bypass Diameter (in) | 1.38 |
| Bypass Plate Diameter | 1.36 in |
| Bypass Plate Diameter (in) | 1.36 |
| Color | Silver |
| Flange Diameter | 2.12 in |
| Flange Diameter (in) | 2.12 |
| Flange Diameter (with Seal) | N/A |
| Flange Diameter (With Seal) (in) | N/A |
| Flange Diameter (without Seal) | 2.125 in |
| Flange Diameter (Without Seal) (in) | 2.125 |
| Flange Thickness | 0.05 in |
| Flange Thickness (in) | 0.05 |
| Freight Class | 70 |
| Gasket or Seal Included | No |
| Gasket/Seal Material | N/A |
| Hardware Included | No |
| Height | 2.35 in |
| Height Between Flanges | 1.48 in |
| Height Between Flanges (in) | 1.48 |
| Height From Flange To Bottom | 1.62 in |
| Height from Flange to Bottom (in) | 1.62 |
| Height From Flange To Top Of Bridge | 0.7 in |
| Height from Flange to Top of Bridge (in) | 0.7 |
| Installation Tool Included | No |
| Jiggle Pin Included | Yes |
| Jiggle Pin Weep Hole | Yes |
| Material | Stainless Steel, Copper |
| Number of Bolt Holes | 0 |
| Number Of Gaskets | 0 |
| Number Of Outlet Ports | 0 |
| Number Of Seals | 0 |
| Open Temperature | 192 |
| Start to Open Temperature | 192 Deg. F |
| Temperature | 192 Deg. F |
| Temperature (F) | 192 Degrees |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 9032100090 |
| Harmonized Tariff Code (HTS) | 9032100090 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00055644916767 |
Part Interchanges
Fits Vehicles
- Ford GT (2017-2020)
- Ford Mustang (2007-2014)
Established in 1958, MotoRad® specializes in designing and manufacturing advanced engine and thermal solutions for automotive OE and aftermarket applications. They offer a comprehensive catalog that includes thermostats, mass airflow sensors, solenoids, ignition coils, cam and crank sensors, oil, fuel, and coolant caps, and other related components. Motorad products are made to comply with OE standards down to the smallest detail, ensuring a seamless fit and reliable performance every time. This dedication to precision engineering and quality led to Motorad earning prestigious awards, including the General Motors Supplier Quality Excellence Award, the Automotive Aftermarket Product Expo Award, ACPN Gold Award, and many more.
