Name: Motorad 1TS1030 Cylinder Head Sensor
SKU: 1ts1030
Price: 18.49 USD
Availability: InStock

MOTORAD part description

Cylinder Head Sensor

Product Description

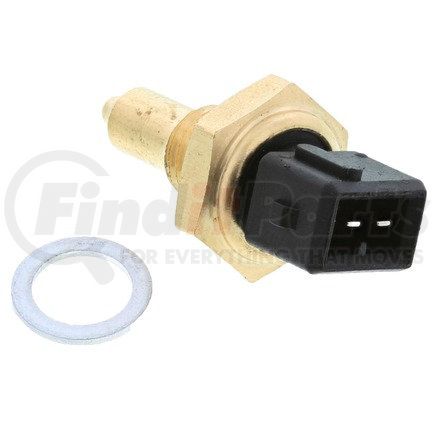

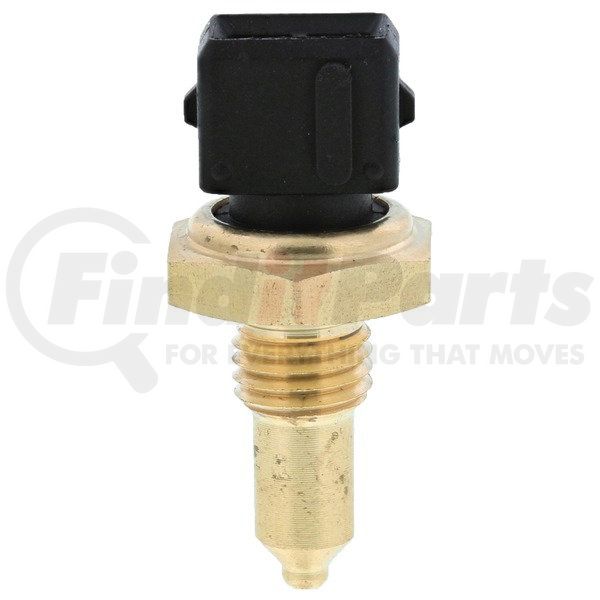

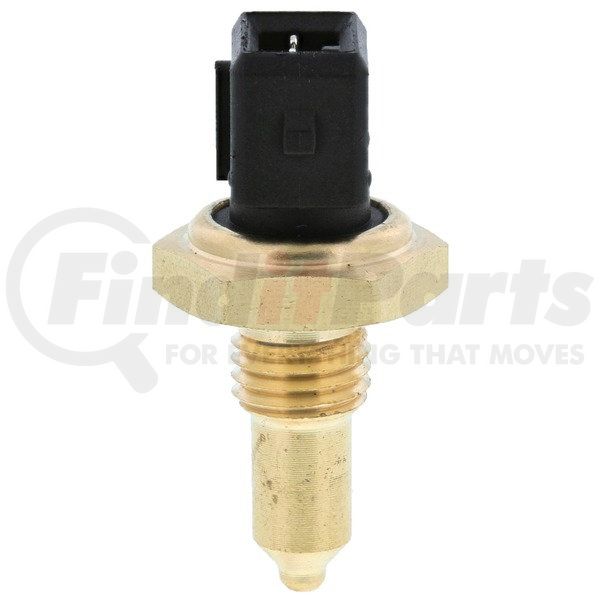

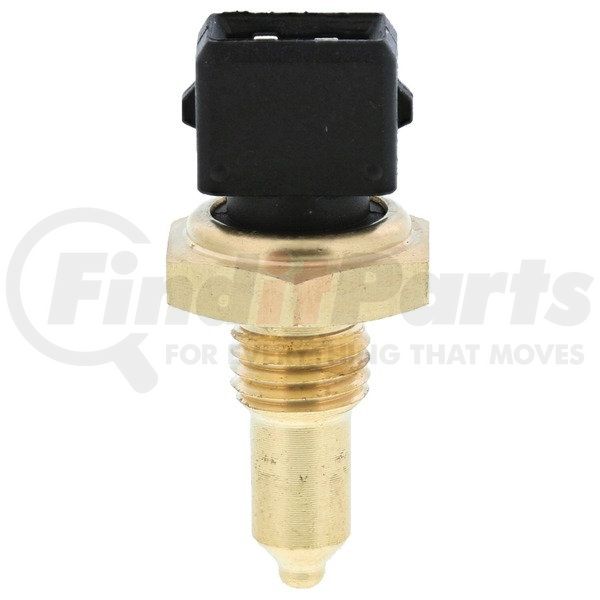

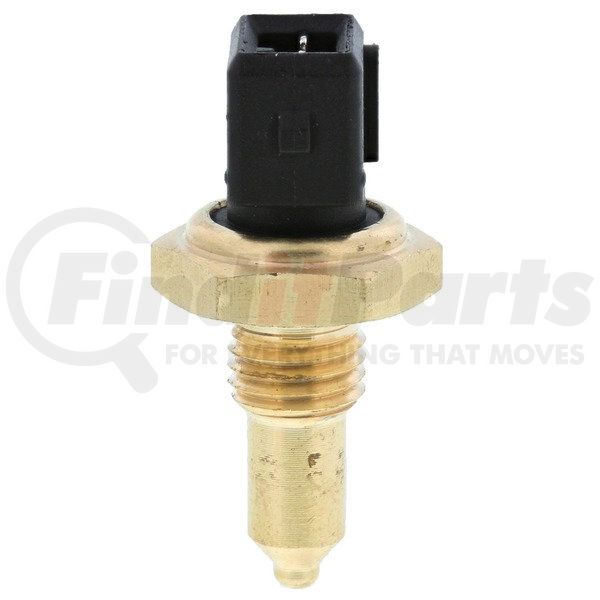

Cylinder Head Temperature Sensor with Washer

Application Summary

(2001-05) BMW 325i (2.5L),(2004-17) BMW X3 (3.0L),(2006-06) BMW 325i (3.0L),(2007-13) BMW 328i (3.0L),(2007-15) BMW 335i (3.0L),(2007-18) BMW X5 (3.0L),(2008-11) BMW 528i (3.0L),(2009-13) BMW 328i xDrive (3.0L),(2012-15) BMW X1 (2.0L),(2012-16) BMW 328i (2.0L),(2012-16) BMW 528i (2.0L),(2012-16) BMW 528i xDrive (2.0L),(2012-18) BMW 320i (2.0L),(2013-16) BMW 328i xDrive (2.0L),(2013-17) BMW X3 (2.0L),(2013-18) BMW 320i xDrive (2.0L),(2014-16) BMW 428i (2.0L),(2014-16) BMW 428i xDrive (2.0L),(2015-18) BMW X4 (2.0L),(2016-18) BMW X5 (2.0L)

Features & Benefits

100% factory resistance calibrated to ensure precision tolerances, resulting in extremely accurate temperature for optimal performance
Thread Sealant and/or O-ring pre-installed on applicable sensors to ensure leak free performance
Brass sensor housing precision machined to meet or exceed OE thermal conductivity
OE precision matched thermistor position for correct output parameters
Extensive product testing includes salt spray, high/low temperature impact, thermal vibration, durability, static electricity, and micro tension, among other tests, to ensure all sensors meet or exceed OEM specifications.

Engine, Cylinder, Temperature, Sensor, Head Sensor, Temp Sensor, Temperature Sensor

Product Attributes

Length	1.96 IN
Length	49.8 MM
Terminal Type	Blade
Connector Quantity	1
Connector Shape	Square
Terminal Quantity	2
Connector Gender	Female
Threaded End Diameter	12.0 MM

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8533408070
Harmonized Tariff Code (HTS)	8533408070
Warranty Time	12
Warranty Time UOM	MO
UPC	00055644923901

Part Interchanges

Established in 1958, MotoRad® specializes in designing and manufacturing advanced engine and thermal solutions for automotive OE and aftermarket applications. They offer a comprehensive catalog that includes thermostats, mass airflow sensors, solenoids, ignition coils, cam and crank sensors, oil, fuel, and coolant caps, and other related components. Motorad products are made to comply with OE standards down to the smallest detail, ensuring a seamless fit and reliable performance every time. This dedication to precision engineering and quality led to Motorad earning prestigious awards, including the General Motors Supplier Quality Excellence Award, the Automotive Aftermarket Product Expo Award, ACPN Gold Award, and many more.
