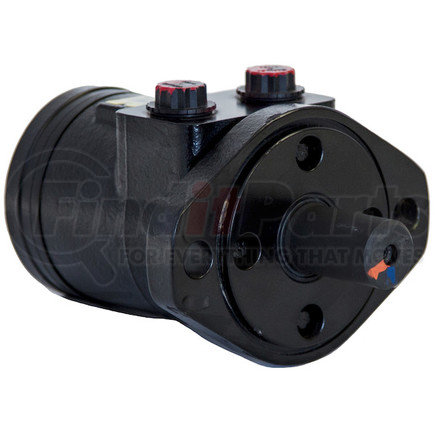

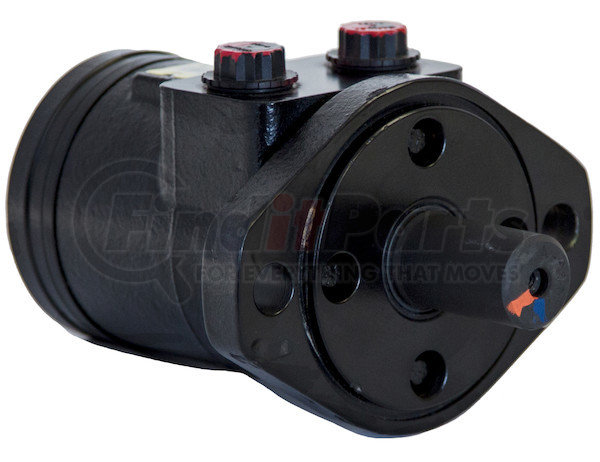

Buyers Products hm034p - Hydraulic Motor With 4-Bolt Mount/NPT Threads And 7.3 Cubic Inches Displacement
- Part Number
- hm034p
- Manufacturer
- BUYERS PRODUCTS
- Description
-
Hydraulic Motor With 4-Bolt Mount/NPT Threads And 7.3 Cubic Inches Displacement
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
BUYERS PRODUCTS part description
Specifications:
| Compares To: | 101-1755-009 |
| Flow (Continuous): | 15 GPM |
| Input Mount Type: | 4 Bolt |
| Material: | Cast Iron |
| Maximum Case Pressure (Without Case Drain): | 1500 PSI |
| Maximum Speed (Continuous): | 585 RPM |
| Pilot Diameter: | 1.75" |
| Shaft Keyway: | 0.25" |
| Shaft Type: | Straight |
| Displacement: | 7.3 in.² |
| Flow (Intermittent): | 18 GPM |
| Torque Rating (Continuous): | 1368 Inch Pound |
| Torque Rating (Intermittent): | 1510 Inch Pound |
| Port Size: | 1/2 NPT |
| Shaft Size: | 1.00" |
| Maximum Speed at Continuous Flow: | 585 RPM |
| Maximum Speed at Intermittent Flow: | 702 RPM |
| Minimum Starting Torque (Continuous Pressure): | 1100 Inch Pound |
| Minimum Starting Torque (Intermittent Pressure): | 1510 Inch Pound |
| Pressure Δ Bar (Continuous): | 1800 PSI |
| Pressure Δ Bar (Intermittent): | 2400 PSI |
| Product Code: | 621 |
Char-Lynn Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact, and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders.
The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate.
Choose from a wide range of motors depending on your needs for flow rates, torque, and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.
Product Common Use: Truck and Trailer Hydraulic Systems
Features & Benefits
- Designed to be economical, efficient, compact and powerful
- Ideal for powering medium-duty applications like compressors, augers, winches, cranes and spreaders
- Industry-proven spool valve design
- State-of-the-art gerotors
- Excellent at providing a high degree of start-up torque or the right mixture of torque and flow rate
Product Description
Hydraulic Motor with 4-Bolt Mount/NPT Threads and 7.3 Cubic Inches Displacement
Features & Benefits
- Designed to be economical, efficient, compact and powerful
- Ideal for powering medium-duty applications like compressors, augers, winches, cranes and spreaders
- Industry-proven spool valve design
- State-of-the-art gerotors
- Excellent at providing a high degree of start-up torque or the right mixture of torque and flow rate
Char-Lynn Hydraulic Motors from Buyers Products are designed to be economical, efficient, compact, and powerful. They are a great solution for powering medium-duty applications like compressors, augers, winches, cranes, and spreaders.The motors have an industry-proven spool valve design combined with state-of-the-art gerotors. They excel at jobs that need a high degree of start-up torque or just the right mixture of torque and flow rate. Choose from a wide range of motors depending on your needs for flow rates, torque, and starting torque. Each model is available with either a 2-bolt or 4-bolt mount. The last digit of the part number (2 or 4) will indicate the number of bolts.
Product Attributes
| Color | Black |
| Displacement | 7.3 SI |
| Finish | Plain |
| Flow (continuous) | 15 gpm |
| Flow (intermittent) | 18 gpm |
| Input Mount Type | 4 Bolt |
| Material | Cast Iron |
| Maximum Case Pressure (without Case Drain) | 1500 PSI |
| Maximum Speed At Continuous Flow | 585 RPM |
| Maximum Speed At Intermittent Flow | 702 RPM |
| Minimum Starting Torque (continuous Pressure) | 1100 in-lb |
| Minimum Starting Torque (intermittent Pressure) | 1510 in-lb |
| Pilot Diameter | 1.75 in |
| Port Size | 0.5 IN |
| Pressure Bar (continuous) | 1800 PSI |
| Pressure Bar (intermittent) | 2400 PSI |
| Shaft Keyway | 0.25 |
| Shaft Size | 1 in |
| SHAFT TYPE | Straight |
| Torque Rating (continuous) | 1368 in-lb |
| Torque Rating (intermittent) | 1510 in-lb |
Buyers Products® is a global leader in manufacturing and distributing truck and trailer hardware, toolboxes, hydraulics, cables and controls, electrical and lighting components, pneumatics, and truck equipment and accessories. All these products are engineered, produced, and assembled in the USA, where the company was first founded in 1946. From a modest distributor of truck and trailer parts, Buyers Products has grown into one of the largest truck parts manufacturers and distributors in the heavy duty truck and equipment market today. Its years of expertise in the industry have allowed it to refine its manufacturing capabilities. From forging, stamping, and laser cutting to robotic welding and powder coating, Buyers Products integrates its dedication to quality in manufacturing products that provide value to its customers.
