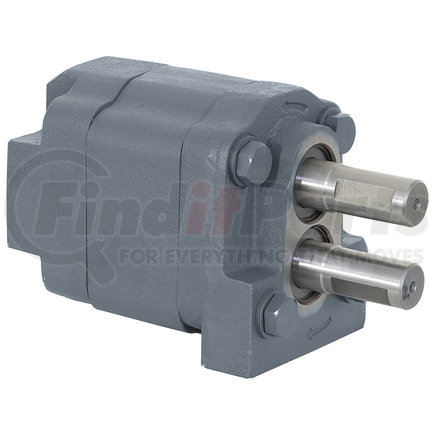

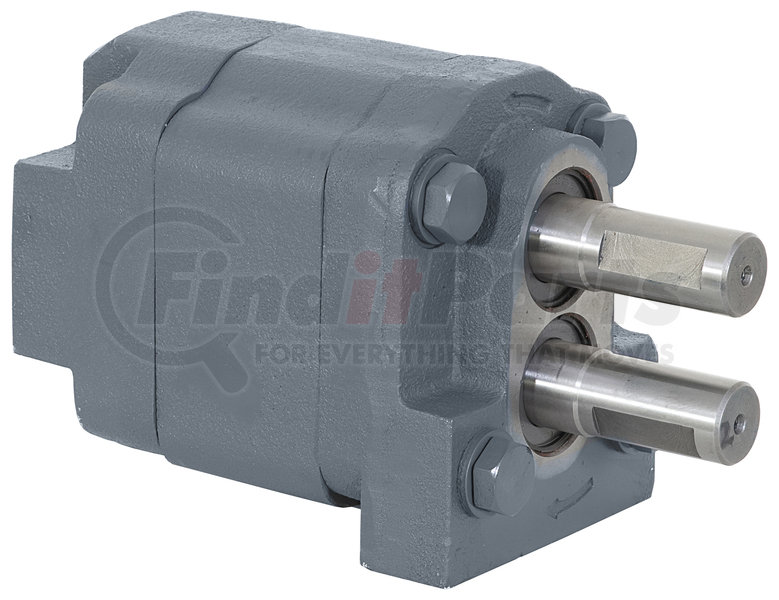

Buyers Products hds36205 - Dual Shaft Hydraulic Pump With 2 Inch Diameter Gear
- Part Number
- hds36205
- Manufacturer
- BUYERS PRODUCTS
- Description
-
Dual Shaft Hydraulic Pump With 2 Inch Diameter Gear
details
$39199
MSRP: $678.06
Save: $286.07
In stock
limited availability at this price!
. Learn more
BUYERS PRODUCTS part description
Specifications:
| Displacement: | 5 in.³/r |
| Displacement : | 22 GPM |
| Gear Width: | 2.000" |
| Input Mount Type: | Integral Bracket |
| Material: | Cast Iron |
| Mount Type: | Frame Mount |
| Shaft Size: | 1.125 |
| Shaft Type: | Round/Keyed |
| Ports (rear/side): | Rear |
| Inlet Port Size: | 1 1/4 NPT |
| Maximum Pressure: | 2500 PSI |
| Direct or Remote Mount: | Remote Mount |
| Outlet Port Size: | 3/4 SAE ORB (-12) |
| Rotation: | Clockwise or Counterclockwise |
| Gear Size: | 2.000" |
| Flow at 1000 RPM: | 22.3 GPM |
| Flow at 1800 RPM: | 37.0 GPM |
| Flow at 1200 RPM: | 24.0 GPM |
| Flow at 1500 RPM: | 30.5 GPM |
| Rear Port Size: | 3/4 SAE ORB (-12) |
| Suction Port Size: | 1 1/2 NPT |
| Product Code: | 620 |
The Dual Shaft Hydraulic Pump from Buyers Products is excellent for powering continuous duty operations such as refuse collection.
The pump is built tough of cast iron. A double shaft design allows for a maximum operating pressure of 2500 PSI while doing continuous duty. It can reach a maximum 1800 RPM.
The pump is bi-rotational and is available in a 2 in. and 2-1/2 in. gear size.
Product Common Use: Truck and Trailer Hydraulic Systems, Refuse Collection Vehicles
Features & Benefits
- Dual shaft design is ideal for powering refuse truck operations
- Tough cast iron construction
- Can handle continuous-duty maximum operating pressure of 2500 PSI
Product Description
Dual Shaft Hydraulic Pump with 2in. Diameter Gear
Features & Benefits
- Tough cast iron construction with heavy duty bearings for longer life
- Direct bolt-on design for easier installation and maintenance
- Tested in real-world operating conditions to ensure reliable performance
- Parts are manufactured and assembled in the U.S.
Buyers Products Power Take Off (PTO) Hydraulic Pump
The Buyers Products power take off (PTO) hydraulic pump is a compact and efficient power source for truck and trailer hydraulic systems. It is available in various sizes and RPM output ranges.
Product Attributes
| Direct Or Remote Mount | Remote Mount |
| Flow At 1000 Rpm | 22.3 GPM G2 |
| Flow At 1200 Rpm | 24.0 GPM G2 |
| Flow At 1500 Rpm | 30.5 GPM G2 |
| Flow At 1800 Rpm | 37.0 GPM G2 |
| Flow Rate | 5 in.³/r |
| Flow Rate | 22 GPM G2 |
| Gear Size | 2.00 IN |
| Gear Width | 2.000 IN |
| Inlet Port Diameter | 1 1/4 NPT |
| Input Mount Type | Integral Bracket |
| Material | Cast Iron |
| Maximum Pressure | 2500 PSI PS |
| Mounting Type | Frame Mount |
| Outlet Port Diameter | 3/4 SAE ORB (-12) |
| Port Size | 1 1/2 NPT IN |
| Port Type | Rear |
| Rear Port Size | 3/4 SAE ORB (-12) IN |
| Rotation | Clockwise or Counterclockwise |
| Shaft Diameter | 1.125 IN |
| SHAFT TYPE | Round/Keyed |
Buyers Products® is a global leader in manufacturing and distributing truck and trailer hardware, toolboxes, hydraulics, cables and controls, electrical and lighting components, pneumatics, and truck equipment and accessories. All these products are engineered, produced, and assembled in the USA, where the company was first founded in 1946. From a modest distributor of truck and trailer parts, Buyers Products has grown into one of the largest truck parts manufacturers and distributors in the heavy duty truck and equipment market today. Its years of expertise in the industry have allowed it to refine its manufacturing capabilities. From forging, stamping, and laser cutting to robotic welding and powder coating, Buyers Products integrates its dedication to quality in manufacturing products that provide value to its customers.
