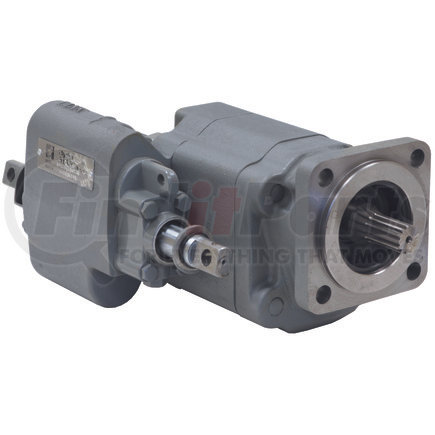

Buyers Products c1010dmcw - Direct Mount Hydraulic Pump With Clockwise Rotation And 2-1/2 Inch Diameter Gear
- Part Number
- c1010dmcw
- Manufacturer
- BUYERS PRODUCTS
- Description
-
Direct Mount Hydraulic Pump With Clockwise Rotation And 2-1/2 Inch Diameter Gear
details
$53999
MSRP: $678.06
Save: $138.07
In stock
limited availability at this price!
. Learn more
BUYERS PRODUCTS part description
Specifications:
| Displacement: | 6 in.³/r |
| Displacement : | 25 GPM |
| Gear Width: | 2.500" |
| Input Mount Type: | Integral Bracket |
| Material: | Cast Iron |
| Maximum Rotations Per Minute (RPM): | 2000 RPM |
| Mount Type: | SAE B 4 Bolt |
| Pilot Diameter: | 4.00" |
| Shaft Size: | 7/8-13 |
| Shaft Type: | Splined |
| Ports (rear/side): | Rear |
| Inlet Port Size: | 1 1/2 NPT |
| Maximum Pressure: | 2500 PSI |
| Direct or Remote Mount: | Direct Mount |
| Outlet Port Size: | 1 NPT |
| Rotation: | Clockwise |
| Gear Size: | 2.5" |
| Flow at 600 RPM: | 13 GPM |
| Flow at 1000 RPM: | 25 GPM |
| Flow at 1800 RPM: | 46 GPM |
| Flow at 900 RPM: | 21 GPM |
| Flow at 1200 RPM: | 33 GPM |
| Flow at 1500 RPM: | 37.5 GPM |
| Rear Port Size: | 1 NPT |
| Suction Port Size: | 1 1/2 NPT |
| Product Code: | 620 |
The Direct Mount Hydraulic Dump Pump with Manual Valve from Buyers Products directly mounts to your PTO for a compact and efficient source of hydraulic power. It is designed for dump operations with 2 or 3 line plumbing and comes set up for standard cable-controlled shift operation. It's also available with air cylinder to convert to pneumatic control on shifter spool.
Based on RPM, its output ranges from 13 to 46 GPM. It includes a relief valve set at 2500 PSI. The unit includes a 4 bolt SAE B mounting flange and 7/8 in. by 13 spline shaft.
You will need to specify the pump rotation when ordering, which you can determine by looking at the pump with the shaft facing you and the belly of the pump facing down.
Note: Buyers Products PTOs can be custom-ordered for your specific vehicle and application. Contact Hydraulic Technical Support for assistance in selecting the correct PTO.
Product Common Use: Truck and Trailer Hydraulic Systems, Dump Trucks
Features & Benefits
- Bolts right to your PTO for a compact and efficient source of hydraulic power
- Designed to handle dump operations with 2 or 3 line plumbing
- Includes a 4 bolt SAE mounting flange and 7/8 by 13 spline shaft
Product Description
Direct Mount Hydraulic Pump with Clockwise Rotation and 2-1/2in. Diameter Gear
Features & Benefits
- Tough cast iron construction with heavy duty bearings for longer life
- Direct bolt-on design for easier installation and maintenance
- Tested in real-world operating conditions to ensure reliable performance
- Parts are manufactured and assembled in the U.S.
Buyers Products Power Take Off (PTO) Hydraulic Pump
The Buyers Products power take off (PTO) hydraulic pump is a compact and efficient power source for truck and trailer hydraulic systems. It is available in various sizes and RPM output ranges.
Product Attributes
| Direct Or Remote Mount | Direct Mount |
| Flow At 1000 Rpm | 25.0 GPM G2 |
| Flow At 1200 Rpm | 33.0 GPM G2 |
| Flow At 1500 Rpm | 37.5 GPM G2 |
| Flow At 1800 Rpm | 46.00 GPM G2 |
| Flow At 600 Rpm | 13.00 GPM G2 |
| Flow At 900 Rpm | 21.00 GPM G2 |
| Flow Rate | 6 in.³/r |
| Flow Rate | 25 GPM G2 |
| Gear Size | 2.50 IN |
| Gear Width | 2.500 IN |
| Inlet Port Diameter | 1 1/2 NPT |
| Input Mount Type | Integral Bracket |
| Material | Cast Iron |
| Maximum Pressure | 2500 PSI PS |
| Maximum Rpm | 2000 RPM R3 |
| Mounting Type | SAE B 4 Bolt |
| Outlet Port Diameter | 1 NPT |
| Pilot Diameter | 4.000 in |
| Port Size | 1 1/2 NPT IN |
| Port Type | Rear |
| Rear Port Size | 1 NPT IN |
| Rotation | Clockwise |
| Shaft Diameter | 7/8-13 IN |
| SHAFT TYPE | Splined |
Buyers Products® is a global leader in manufacturing and distributing truck and trailer hardware, toolboxes, hydraulics, cables and controls, electrical and lighting components, pneumatics, and truck equipment and accessories. All these products are engineered, produced, and assembled in the USA, where the company was first founded in 1946. From a modest distributor of truck and trailer parts, Buyers Products has grown into one of the largest truck parts manufacturers and distributors in the heavy duty truck and equipment market today. Its years of expertise in the industry have allowed it to refine its manufacturing capabilities. From forging, stamping, and laser cutting to robotic welding and powder coating, Buyers Products integrates its dedication to quality in manufacturing products that provide value to its customers.
