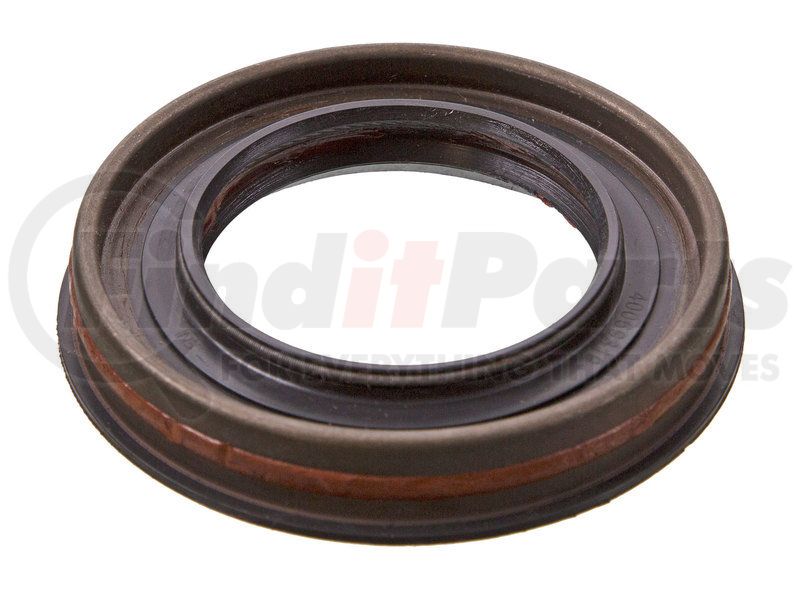

National Seals 711032 - Pinion Seal
- Part Number
- 711032
- Manufacturer
- FEDERAL MOGUL-NATIONAL SEALS
- Description
-
Pinion Seal
details
$6299
In stock
limited availability at this price!
. Learn more
FEDERAL MOGUL-NATIONAL SEALS part description
Product Description
Differential Pinion Seal
Application Summary
2012-2015 Chevrolet Camaro (Rear Outer) (Qualifier: with 9.4 (in) Ring Gear, with AAM Axle, Call For Availability); 2012-2018 Nissan NV1500 (Rear Outer) (Qualifier: with American 250 (mm) Ring Gear, with MA248 Axle, Call For Availability); 2012-2018 Nissan NV2500 (Rear Outer) (Qualifier: with American 250 (mm) Ring Gear, with MA248 Axle, Call For Availability); 2012-2018 Nissan NV3500 (Rear Outer) (Qualifier: with American 250 (mm) Ring Gear, with MA248 Axle, Call For Availability)
Features & Benefits

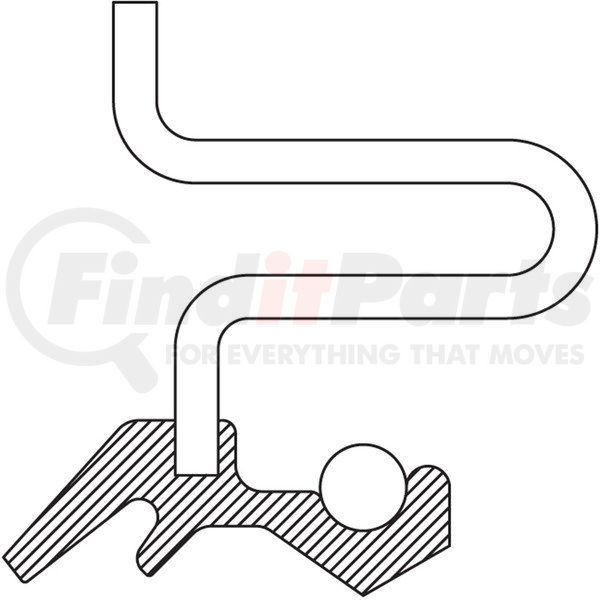

- Design type: spring loaded; multi-lip
- -40degF to 400degF / -40degC to 204degC
- Excellent high temperature capabilities
- Compatible with wide range of fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Material | Fluoro-Elastomer |
| Flanged Outside Diameter (inch) | 3.740 IN |
| Flanged Outside Diameter (mm) | 95.000 MM |
| Helix Type | Clockwise-Spiral Lip Design |
| Housing Bore (inch) | 3.524 IN |
| Housing Bore (mm) | 89.500 MM |
| Outside Diameter (inch) | 3.532 IN |
| Outside Diameter (mm) | 89.700 MM |
| Overall Width With Side Lip (mm) | 18.500 MM |
| Overall Width With Side Lip (inch) | 0.728 IN |
| Part Description | Oil Seal |
| Series | 711000 |
| Shaft (inch) | 2.205 IN |
| Shaft (mm) | 56.000 MM |
| Type | 86 |
| Unit of Dimension | Metric |
| Width (inch) | 0.512 IN |
| Width (mm) | 13.000 MM |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| UPC | 00019826208156 |
Fits Vehicles
- Chevrolet Camaro (2012-2015)
- Nissan NV3500 (2012-2018)
- Nissan NV1500 (2012-2018)
- Nissan NV2500 (2012-2018)
The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
