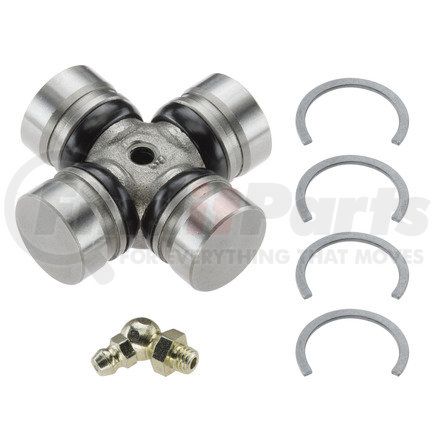

Moog 1500 - U-Joint
- Part Number
- 1500
- Manufacturer
- FEDERAL MOGUL-MOOG
- Description
-
U-Joint
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
FEDERAL MOGUL-MOOG part description
Product Description
Greaseable Premium Universal Joint
Application Summary
1501 with plain bearing
Features & Benefits
- BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
- STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
- KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
- GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
- INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
- RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
Product Attributes
| Length Axis 1 | 1.485 IN |
| Length Axis 1 | 37.7 MM |
| Length Axis 2 | 1.485 IN |
| Length Axis 2 | 37.7 MM |
| Bearing Cap Type | 4 Grooved Round Bearings |
| Greasable | YES |
| Bearing Cap Axis 2 Diameter | 0.938 IN |
| Bearing Cap Axis 2 Diameter | 23.8 MM |
| Bearing Cap Axis 1 Diameter | 0.938 IN |
| Bearing Cap Axis 1 Diameter | 23.8 MM |
| Bearing Type A | Round Grooved |
| Bearing Type B | Round Grooved |
| Image | UJoint_4Grooved.tif |
| Length Measurement A | Outside of Groove to Outside of Groove |
| Length Measurement B | Inside of Groove to Inside of Groove plus thickness of 2 Lock Rings |
| LUBE FITTING LOCATION | Angled lube fitting in center of cross |
| OE Series | Neapco 0600 |
| Part Description | Universal Joint |
| U-Joint Identification | 4 Grooved Round Bearings |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708991510 |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00080066602301 |
Part Interchanges
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
