Quick Steer DS1002 -
- Part Number
- DS1002
- Manufacturer
- QUICK STEER
- Description
- details
$2349
In stock
limited availability at this price!
. Learn more
QUICK STEER part description
Product Description

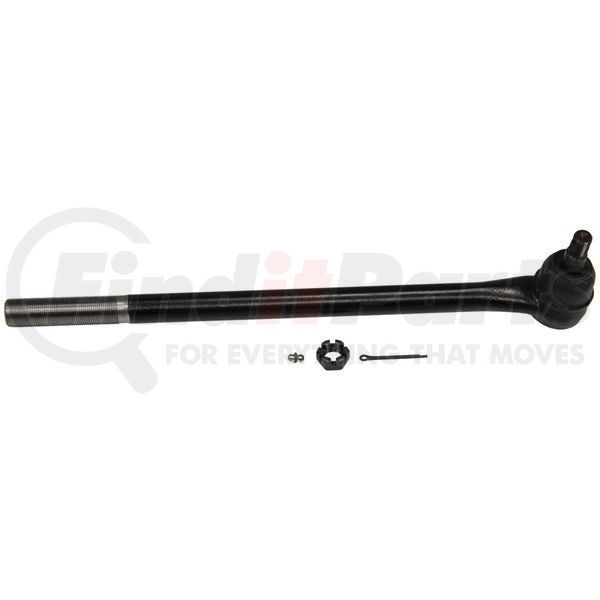

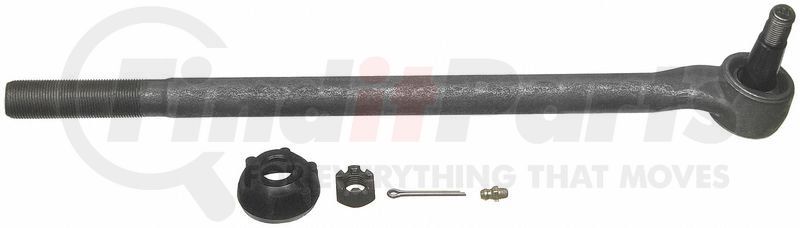

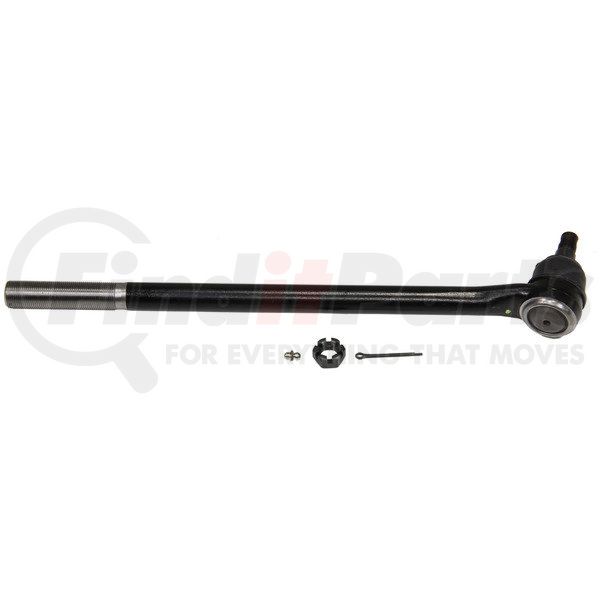

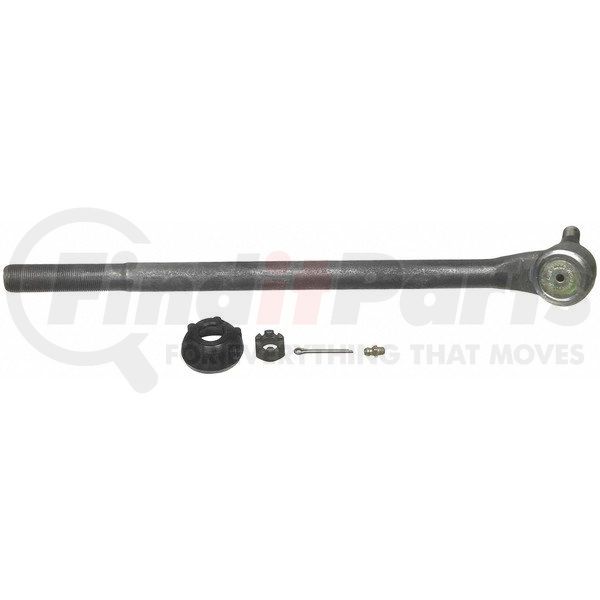

Steering Tie Rod End
Application Summary
1980-1985 Ford F-250 (Left Inner) (Drive: 4WD / Qualifier: with 22 (mm) Threads, Thru 12/84); 1980-1985 Ford F-350 (Left Inner) (Drive: 4WD / Qualifier: Thru 2/85, with Twin I-Beam Axle)
Features & Benefits
- Provides ease of installation
- Designed for OE fit and function
- Premium boot keeps out contaminants
- Made of forged alloy steel for durability
Product Attributes
| End 1 Gender | Male |
| End 2 Gender | Male |
| Dust Boot Included | Yes |
| End 2 Thread Diameter | 14.0 MM |
| Greasable | Yes |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length Stud Center to End | 16.340 IN |
| End 1 Thread Diameter | 22.0 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| UPC | 00080066578026 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
Part Interchanges
- Coni-Seal XDS1002
- Euclid E-6684-TU
- Euclid E6684
- ACDelco 45A2027
- ACDelco 46A2027A
- Maremont DL1002
- Mcquay-Norris DS1002
- Perfect Circle 269-5073
- Raybestos Brakes 405-1027
- Raybestos Brakes 405-1027B
- Autospecialty 12-85011
- Dayton Parts 346292
- Firestone DS1002
- Midas TR1442
- Mevotech MDS1002
- Centric Parts 612.65048
- Centric Parts 61365048
- Barcap DS1002
- Duralast DS1002
- Ford E0TZ-3A130A
- Unimotive DL1002
- Western Auto 8040024
- Dorman 531-822
- TRW Steering and Suspension Parts DS1002
- NAPA 269-5073
- NAPA DS1002
- Mcquay-Norris DS1002E
- Falcon Steering Systems DS1002
Fits Vehicles
- Ford F-350 (1980-1985)
- Ford F-250 (1980-1985)
Do you need a new set of wishbones, tie rods, or ball joints without squeezing your wallet? Quick Steer® has got you covered. A Federal-Mogul brand, Quick Steer offers a compact, budget-friendly range of frequently replaced parts for steering and suspension systems of a wide selection of vehicles. These include vehicles from popular name plates like Fiat, Opel, Peugeot, Renault, Seat, Skoda, and all major Asian auto brands. Quick Steer parts are manufactured using high-grade materials and are tested and approved to meet international standards on quality and safety. They’re an excellent choice for customers who are sensitive about servicing and maintenance costs without compromising quality.
