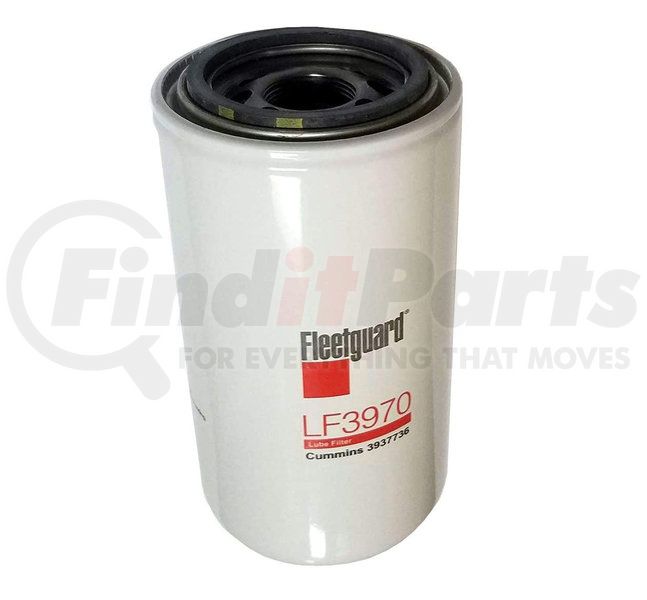

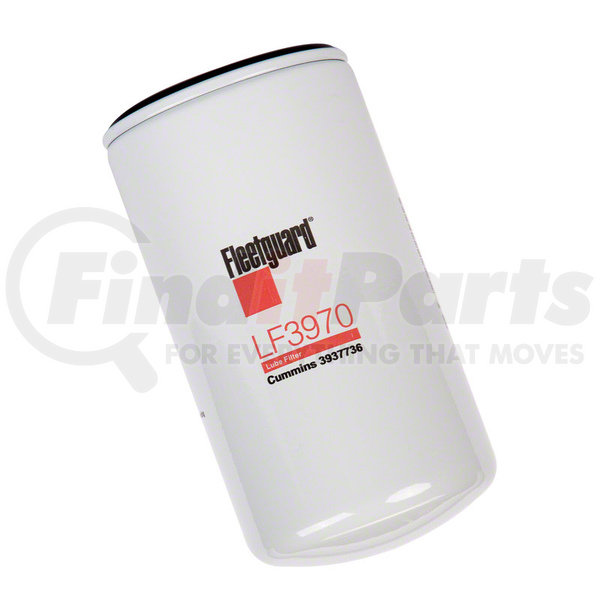

Fleetguard LF3970 - Oil Filter - for Cummins ISB6.7 Engine, Spin-On
- Part Number
- LF3970
- Manufacturer
- FLEETGUARD
- Description
-
Oil Filter - for Cummins ISB6.7 Engine, Spin-On
details
$1899
MSRP: $29.17
Save: $10.18
In stock
limited availability at this price!
. Learn more
FLEETGUARD part description
Technical specifications
| Overall Height | 176.78 mm (6.96 in) | |
| Largest Outside Diameter | 93.47 mm (3.68 in) | |
| Seam Outside Diameter | 93.22 mm (3.67 in) | |
| Gasket Outside Diameter | 71.88 mm (2.83 in) | |
| Gasket Inside Diameter | 62.48 mm (2.46 in) | |
| Thread Size | 1 1/8-16 UN-2B | |
| Standpipe | NO | |
| ADBV | null | |
| BPV Setting | 0 kPa (0 PSI) | |
| 30 Micron Efficiency, TWA | 98.7 % (98.7 %) | |
Fleetguard Lube Filter
The Fleetguard lube filter is designed to meet or exceed OE performance requirements and the demands of modern engines. It ensures lubricating remains free of impurities and extends the life of the engine.
Features & Benefits
- Advanced filter media removes microscopic dirt particles that cause the most engine damage
- Reduces engine wear by up to 60% in some applications
- Removes up to three times the contaminants compared to full synthetic filters from other brands
- Creates a low-pressure zone for oil to flow through the pleated media for increased efficiency
- Spin-on configuration allows for easy removal and installation
| Type | Spin On |
Product Description
Lube, Full-Flow Spin-On
Product Attributes
| Filter Media Material | StrataPore |
| Height | 6.96 in. (176.78 mm) |
| Micron Rating | 98.7 percent at 30 Microns |
| Gasket Inside Diameter | 2.46 in. (62.48 mm) |
| Gasket Outside Diameter | 2.83 in. (71.88 mm) |
| Notes | Full-Flow Spin-On |
| Outside Diameter (Largest) | 3.68 in. (93.47 mm) |
| Seam Outside Diameter | 3.67 in. (93.22 mm) |
| Standpipe | NO |
| Thread Size | 1 1/8-16 UN-2B |
| Largest Od | 93.47 mm |
| Overall Height | 6.96 in |
Additional Information
| Warranty Distance | 100000 |
| Warranty Distance UOM | DH |
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| UPC | 00638217116841 |
Part Interchanges
- Baldwin B7177
- Cummins 3937736
- Cummins 5404947
- Volvo 14406393
- Donaldson P550428
- Donaldson P551019
- Hastings LF551
- FRAM PH8942
- Kralinator L349
- Wix 57028
- Wix 57182
- Big A 91028
- Baldwin BK6031
- LUBER-FINER LFP3729
- LUBER-FINER LFP3970
- CARQUEST 84028
- CARQUEST 84182
- Mann-Filter W951
- AGCO 509249D1
- AGCO 702619A1
- Blount 30010252
- Case 71101552
- Case J937736
- Case J942365
- Consolidated Diesel 3942365
- Cummins 3937144
- Cummins 3942365
- Cummins 5296733
- Cummins A041C694
- Hyundai 11N870110
- Hyundai 11N870110PB
- Volvo 43919927
- Hyster 1524551
- Hagie 316372
- JC Bamford 32925413
- Kalmar 9238290620
- Komatsu 21U6011320
- Komatsu 21U6011330
- Liebherr 11691297
- Manitowoc 9414101679
- Sakura C5708
- Schaeff 5106030089
- Tec-Fil PSL284
- Terex 218667
- Terex 704970120
- Case IH 84476755
- Grove 9414101679
- NAPA 7028
- NAPA 7182
- Doosan K1047673
- AMMANN ND116140
- SENNEBOGEN 106924
FLEETGUARD LF3970 Cross Reference
We have 7 alternatives for the LF3970 by FLEETGUARD:
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
