Name: National Seals 710987 Auto Trans Seal
SKU: 710987
Price: 41.99 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

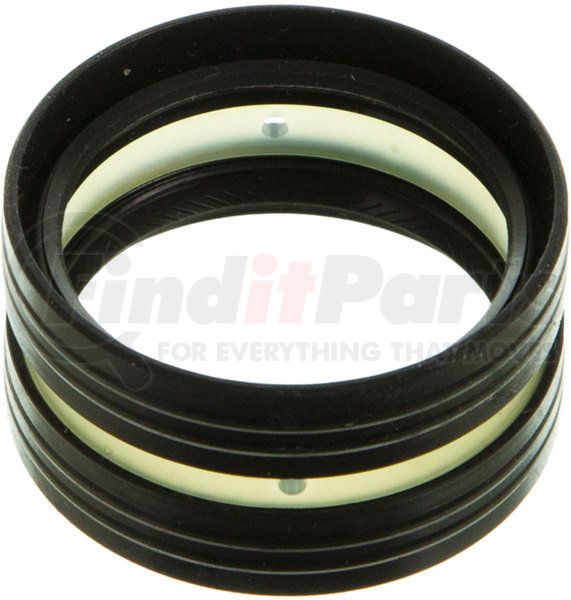

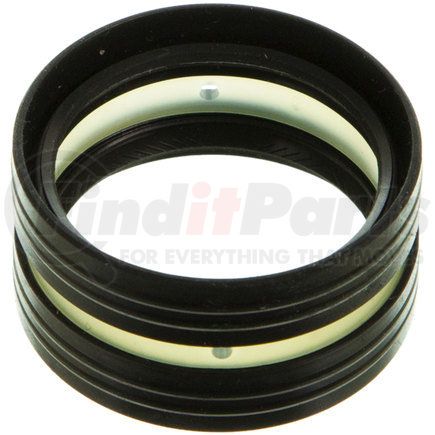

Oil Seal

Product Description

Auto Trans Transfer Shaft Seal

Application Summary

2009-2010 Pontiac Vibe (Left) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Toyota U140F Transmission); 2010-2015 Lexus GX460 (Left) (Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Toyota U760F Transmission); 2015-2019 Lexus NX300h (Transmission Code: P314 & Transmission Control Type: Automatic CVT); 2015-2017 Lexus NX200t (Left) (Transmission Code: U661F & Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Toyota U661F Transmission); 2018-2019 Lexus NX300 (Left) (Transmission Code: U661F & Transmission Base Gear: 6 & Transmission Control Type: Automatic); 2019 Lexus RX450hL (Transmission Code: P313 & Transmission Control Type: Automatic CVT); 2010-2015 Lexus RX350 (Left) (Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Toyota U660F Transmission); 2013-2019 Lexus RX450h (Transmission Code: P313 & Transmission Control Type: Automatic CVT); 2014-2019 Toyota Highlander (Left) (Transmission Code: U660F, P313 & Transmission Base Gear: 6 & Transmission Control Type: Automatic, Automatic CVT / Qualifier: with Toyota U660F Transmission); 2009-2014 Toyota Matrix (Left) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Toyota U140F Transmission); 2011-2016 Toyota Sienna (Left) (Transmission Code: U660F & Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Toyota U660F Transmission); 2006-2018 Toyota RAV4 (Left) (Transmission Code: U760F & Transmission Base Gear: 4, 6 & Transmission Control Type: Automatic / Qualifier: with Toyota U140F Transmission, with Toyota U760F Transmission); 2009-2016 Toyota Venza (Left) (Transmission Code: U760F, U660F & Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Toyota U660F Transmission, with Toyota U760F Transmission)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -30degF to 325degF / -34degC to 163degC
Superior thermal and chemical resistance
Good abrasion and dry running capability
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	1.358 IN
Thickness	0.354 IN
Outside Diameter	1.632 IN
Sealing Material	Ethylene-Acrylic
Helix Type	Bi-Directional Lip Design
Housing Bore (inch)	1.624 IN
Housing Bore (mm)	41.250 MM
Material	Ethylene-Acrylic
Outside Diameter (inch)	1.632 IN
Outside Diameter (mm)	41.450 MM
Part Description	Oil Seal
Series	710900
Shaft (inch)	1.358 IN
Shaft (mm)	34.500 MM
Type	#
Unit of Dimension	Inch
Width (inch)	0.354 IN
Width (mm)	9.000 MM

Additional Information

Country of Origin (Primary)	TW
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00019826209740

Part Interchanges

Fits Vehicles

Lexus RX450hL (2019)
Lexus NX300 (2018-2019)
Toyota Venza (2009-2016)
Lexus NX200t (2015-2017)
Lexus NX300h (2015-2019)
Toyota Highlander (2014-2019)
Lexus RX450h (2013-2019)
Toyota Sienna (2011-2016)
Lexus GX460 (2010-2015)
Lexus RX350 (2010-2015)
Pontiac Vibe (2009-2010)
Toyota Matrix (2009-2014)
Toyota RAV4 (2006-2018)

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
